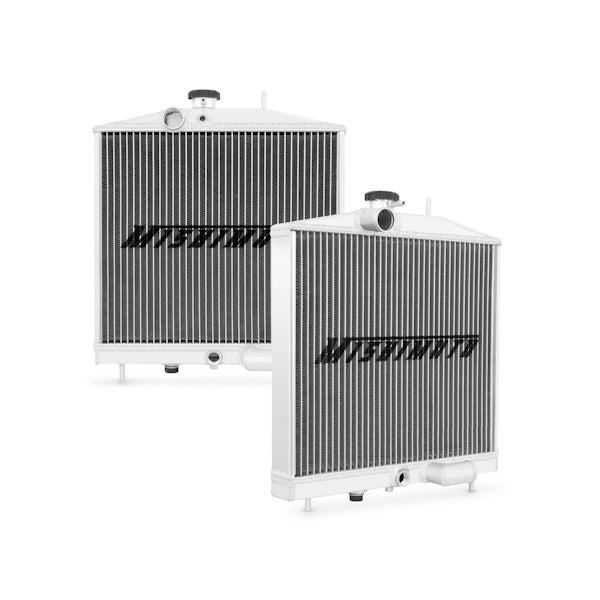

Mishimoto is proud to release a brand new radiator for EK chassis Civics with K-Series engine swaps.Our half size radiator is designed specifically for your swapped vehicle with high performance driving in mind.This radiator is a direct drop in unit that does not require any trimming, drilling or mount alterations.The Mishimoto radiator will simplify a cooling solution for your K-swap and includes ports for the fan switch and coolant temperature sensor. All Mishimoto radiators include a high pressure 1.3 bar Mishimoto radiator cap and a lifetime warranty.
- Designed specifically for the 1996-2000 Honda Civic EK chassis with K-series engine swap
- Provides a bolt-in cooling solution, simplifying the engine swap process
- Full aluminum construction with durable, TIG-welded end tanks
Attributes:
- Brand Name: Mishimoto
- GTIN: 00748666001343
- Core Finish: Uncoated
- Core Height: 12.82
- Core Length: 14.96
- Core Material: Aluminum
- Core Row Quantity: 2
- Core Thickness: 1.57
- Down Flow Or Cross Flow Type: Down Flow
- Drain Plug Included: Yes
- Drain Plug Thread Size: M12 - 1.5
- Fluid Capacity: 0
- Inlet Diameter: 1.25
- Inlet Location: Top Left
- Install Difficulty: 3
- Outlet Diameter: 1.25
- Outlet Location: Bottom Center
- Overall Height: 15.12
- Overall Length: 17.99
- Overall Width: 4.02
- Radiator Cap Included: Yes
- SellingPoint01: Designed specifically for the 1996-2000 Honda Civic EK chassis with K-series engine swap
- SellingPoint02: Provides a bolt-in cooling solution, simplifying the engine swap process
- SellingPoint03: Full aluminum construction with durable, TIG-welded end tanks
- SellingPoint04: Features a two-row, 1.57-in thick, efficient brazed aluminum core
- SellingPoint05: Substantial fluid capacity and optimal heat dissipation
- SellingPoint06: Provides efficient heat exchange for naturally aspirated and forced induction vehicles
- SellingPoint07: Includes threaded fan switch port to function with stock sensor
- SellingPoint08: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
- SellingPoint09: Included magnetic drain plug captures harmful metal debris to safeguard cooling system performance
- SellingPoint10: Mishimoto Lifetime Warranty
- SellingPoint11: N/A
- SellingPoint12: N/A
- SellingPoint13: N/A
- SellingPoint14: N/A
- SellingPoint15: N/A
- TechSpec Applications: 1996-2000 Honda Civic EK
- TechSpec Chassis Codes: N/A
- TechSpec Core Height (in): 12.82
- TechSpec Core Length (in): 14.96
- TechSpec Core Thickness (in): 1.57
- TechSpec DPI: N/A
- TechSpec Drain Plug Thread Size: M12 x 1.5
- TechSpec Engine Codes: K20
- TechSpec Fluid Capacity (gal): N/A
- TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug w/ Dowty Oil Seal--Mishimoto Lifetime Warranty
- TechSpec Inlet (in): 1.25
- TechSpec Material: Aluminum
- TechSpec Note: N/A
- TechSpec Outlet (in): 1.25
- TechSpec Overall Height (in): 15.12
- TechSpec Overall Length (in): 17.99
- TechSpec Overall Width (in): 4.02
- TechSpec Rows: 2
- Transmission Oil Cooler Fitting Type: N/A
- Transmission Oil Cooler Included: No
Extended Information:
- Country of Origin: CN
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 21.2 x 6.75 x 17 inches
- Weight: 7.72 POUNDS
