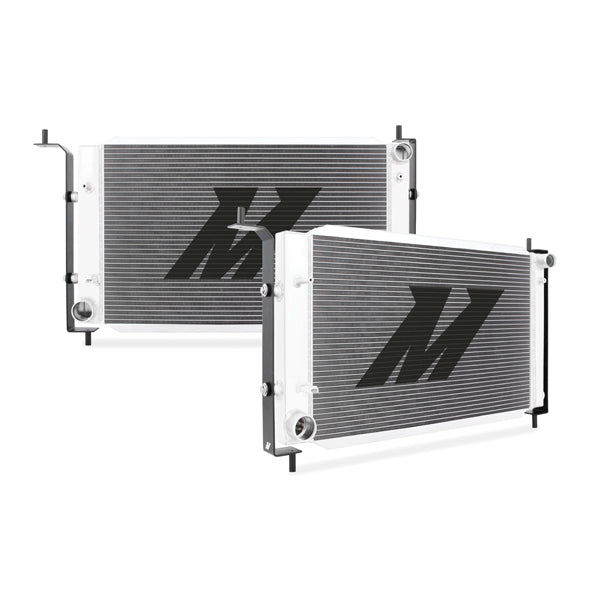

Mishimoto has released a revolutionary new radiator for the 1996 Ford Mustang.The high torque generated by the Mustangs revealed a fatal flaw in the OEM design, where the torquing chassis would cause the OEM radiators to separate the endtanks from the cores.Utilizing a patent-pending floating bracket system, this radiator was engineered to eliminate the issues found in the OEM design while simultaneously adding cooling capacity and increasing efficiency.The new Mishimoto Mustang radiator is a direct fit and installs in about two hours with no cutting or trimming required.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and an excellent warranty.
- Full aluminum construction including durable, TIG-welded end tanks
- Features a two-row, 1.57-in thick, efficient brazed aluminum core
- Perfect for use on the street or strip
Attributes:
- Brand Name: Mishimoto
- GTIN: 00748666000520
- Core Finish: Uncoated
- Core Height: 15.28
- Core Length: 24.02
- Core Material: Aluminum
- Core Row Quantity: 2
- Core Thickness: 1.57
- Down Flow Or Cross Flow Type: Cross Flow
- Drain Plug Included: Yes
- Drain Plug Thread Size: M12 - 1.5
- Fluid Capacity: 3.97
- Inlet Diameter: 1.5
- Inlet Location: Top Right
- Install Difficulty: 3
- Outlet Diameter: 1.77
- Outlet Location: Bottom Left
- Overall Height: 34.8
- Overall Length: 19.2
- Overall Width: 4.2
- Radiator Cap Included: No
- SellingPoint01: Direct fit for the 1996 Ford Mustang 4.6L with manual transmission
- SellingPoint02: Full aluminum construction including durable, TIG-welded end tanks
- SellingPoint03: Features a two-row, 1.57-in thick, efficient brazed aluminum core
- SellingPoint04: Perfect for use on the street or strip
- SellingPoint05: Efficient temperature regulation for both stock and modified vehicles
- SellingPoint06: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
- SellingPoint07: Patent No. US D703,126
- SellingPoint08: Mishimoto Lifetime Warranty
- SellingPoint09: N/A
- SellingPoint10: N/A
- SellingPoint11: N/A
- SellingPoint12: N/A
- SellingPoint13: N/A
- SellingPoint14: N/A
- SellingPoint15: N/A
- TechSpec Applications: 1996 Ford Mustang Cobra
- TechSpec Chassis Codes: SN-95
- TechSpec Core Height (in): 15.28
- TechSpec Core Length (in): 24.02
- TechSpec Core Thickness (in): 1.57
- TechSpec DPI: 1775
- TechSpec Drain Plug Thread Size: M12 x 1.5
- TechSpec Engine Codes: 289ci (4.6L)
- TechSpec Fluid Capacity (gal): 3.97
- TechSpec Includes: Mishimoto Radiator--Magnetic Drain Plug w/ Dowty Oil Seal--Left & Right Brackets--(4) - Rubber Bushings & Metal Collars--(4) - M8 Flange Head Bolts--(4) - M8 Washers--Mishimoto Lifetime Warranty
- TechSpec Inlet (in): 1.5
- TechSpec Material: Aluminum
- TechSpec Note: N/A
- TechSpec Outlet (in): 1.77
- TechSpec Overall Height (in): 34.8
- TechSpec Overall Length (in): 19.2
- TechSpec Overall Width (in): 4.2
- TechSpec Rows: 2
- Transmission Oil Cooler Fitting Type: N/A
- Transmission Oil Cooler Included: No
Extended Information:
- Country of Origin: China
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 36 x 9 x 24.5 inches
- Weight: 19 POUNDS
