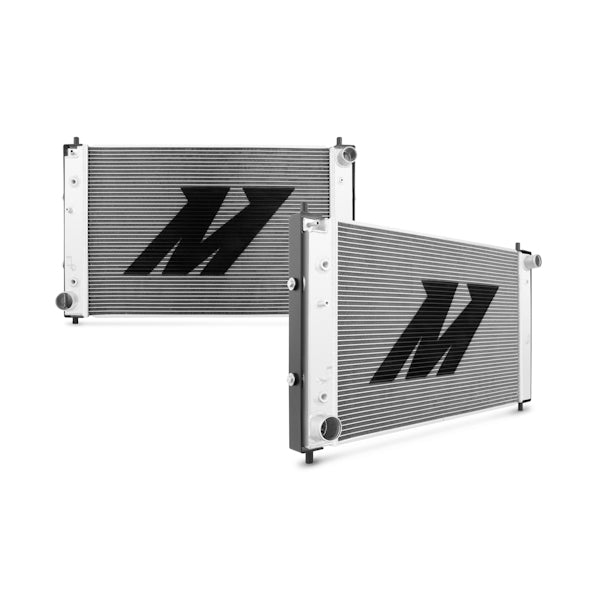

Mishimoto has released a revolutionary new radiator for the automatic 1997-2004 Ford Mustang.The high torque generated by the Mustangs revealed a fatal flaw in the OEM design, where the torquing chassis would cause the OEM radiators to separate the endtanks from the cores.Utilizing a patented floating bracket system, this radiator was engineered to eliminate the issues found in the OEM design while simultaneously adding cooling capacity and increasing efficiency.The new Mishimoto Mustang radiator is a direct fit and installs in about two hours with no cutting or trimming required. All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and an excellent warranty.
- Full aluminum construction including durable, TIG-welded end tanks
- Features a two-row, 1.57-in thick, efficient brazed aluminum core
- Increased fluid capacity and optimal heat dissipation
Attributes:
- Brand Name: Mishimoto
- GTIN: 00748666001329
- Core Finish: Uncoated
- Core Height: 17.24
- Core Length: 24.92
- Core Material: Aluminum
- Core Row Quantity: 2
- Core Thickness: 1.57
- Down Flow Or Cross Flow Type: Cross Flow
- Drain Plug Included: Yes
- Drain Plug Thread Size: M12 - 1.5
- Fluid Capacity: 3.97
- Inlet Diameter: 1.57
- Inlet Location: Top Right
- Install Difficulty: 3
- Outlet Diameter: 1.77
- Outlet Location: Bottom Left
- Overall Height: 31.57
- Overall Length: 19.76
- Overall Width: 4.68
- Radiator Cap Included: No
- SellingPoint01: Direct fit for the 1997-2004 Ford Mustang 4.6L with automatic transmission
- SellingPoint02: Full aluminum construction including durable, TIG-welded end tanks
- SellingPoint03: Features a two-row, 1.57-in thick, efficient brazed aluminum core
- SellingPoint04: Increased fluid capacity and optimal heat dissipation
- SellingPoint05: Perfect for use on the street or strip
- SellingPoint06: Efficient temperature regulation for both stock and mo
- SellingPoint07: Features internal transmission fluid cooler which accepts factory cooler lines
- SellingPoint08: Utilizes patent-pending radiator stabilizer system which isolates the radiator from the chassis, eliminating the potential of chassis flex from impacting the integrity of the radiator
- SellingPoint09: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
- SellingPoint10: Patent No. US D703,126
- SellingPoint11: Mishimoto Lifetime Warranty
- SellingPoint12: N/A
- SellingPoint13: N/A
- SellingPoint14: N/A
- SellingPoint15: N/A
- TechSpec Applications: 1997-2001 Ford Mustang Cobra--2002-2004 Ford Mustang SVT Cobra--2001 Ford Mustang Bullitt--2003-2004 Ford Mustang Mach 1
- TechSpec Chassis Codes: SN-95
- TechSpec Core Height (in): 17.24
- TechSpec Core Length (in): 24.92
- TechSpec Core Thickness (in): 1.57
- TechSpec DPI: 2139
- TechSpec Drain Plug Thread Size: M12 x 1.5
- TechSpec Engine Codes: 289ci (4.6L)
- TechSpec Fluid Capacity (gal): 3.97
- TechSpec Includes: Mishimoto Radiator--Magnetic Drain Plug w/ Dowty Oil Seal--Left & Right Brackets--(4) - Rubber Bushings & Metal Collars--(4) - M8 Flange Head Bolts--(4) - M8 Washers--Mishimoto Lifetime Warranty
- TechSpec Inlet (in): 1.57
- TechSpec Material: Aluminum
- TechSpec Note: N/A
- TechSpec Outlet (in): 1.77
- TechSpec Overall Height (in): 31.57
- TechSpec Overall Length (in): 19.76
- TechSpec Overall Width (in): 4.68
- TechSpec Rows: 2
- Transmission Oil Cooler Fitting Type: N/A
- Transmission Oil Cooler Included: Yes
Extended Information:
- Country of Origin: CN
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 36 x 9 x 24 inches
- Weight: 5 POUNDS
