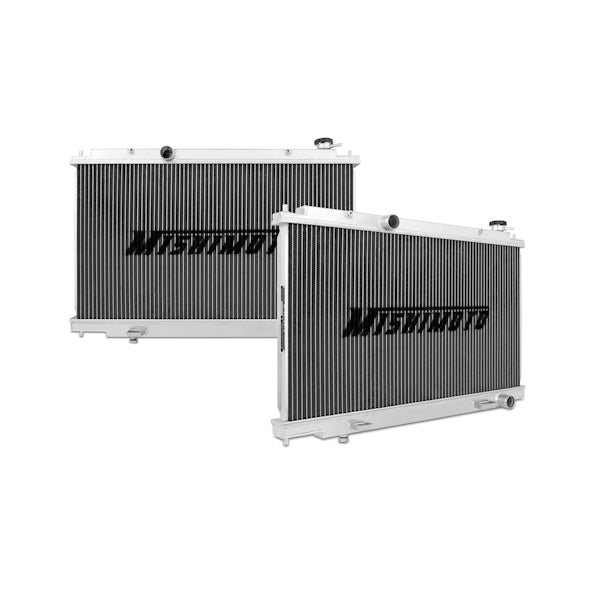

The Mishimoto performance aluminum radiator for the Nissan Maxima is designed and engineered to maximize cooling efficiency, boost engine functions, and protect your car from overheating.Every Mishimoto aluminum radiator is a direct OEM fit, making installation effortless with no cutting or modification required.This is the ideal upgrade to the stock Nissan Maxima radiator.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and a great warranty including accident protection.
- Full aluminum construction including durable, TIG-welded end tanks
- Features a two-row, 1.42-in thick, efficient brazed aluminum core
- Increased fluid capacity and optimal heat dissipation
Attributes:
- Brand Name: Mishimoto
- GTIN: 00748354804416
- Core Finish: Uncoated
- Core Height: 15.75
- Core Length: 28.15
- Core Material: Aluminum
- Core Row Quantity: 2
- Core Thickness: 1.42
- Down Flow Or Cross Flow Type: Down Flow
- Drain Plug Included: Yes
- Drain Plug Thread Size: M12 - 1.5
- Fluid Capacity: 2.54
- Inlet Diameter: 1.38
- Inlet Location: Top Left
- Install Difficulty: 3
- Outlet Diameter: 1.38
- Outlet Location: Bottom Right
- Overall Height: 29.69
- Overall Length: 20.28
- Overall Width: 1.92
- Radiator Cap Included: Yes
- SellingPoint01: Direct fit for the 2004-2008 Nissan Maxima 3.5L
- SellingPoint02: Full aluminum construction including durable, TIG-welded end tanks
- SellingPoint03: Features a two-row, 1.42-in thick, efficient brazed aluminum core
- SellingPoint04: Increased fluid capacity and optimal heat dissipation
- SellingPoint05: Perfect for use on the street, strip, or track
- SellingPoint06: Ideal replacement for an aging and/or clogged stock radiator
- SellingPoint07: Efficient temperature regulation for both stock and modified vehicles
- SellingPoint08: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
- SellingPoint09: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
- SellingPoint10: Mishimoto Lifetime Warranty
- SellingPoint11: N/A
- SellingPoint12: N/A
- SellingPoint13: N/A
- SellingPoint14: N/A
- SellingPoint15: N/A
- TechSpec Applications: 2004 Maxima--2005-2008 Maxima SE--2005-2008 Maxima SL--
- TechSpec Chassis Codes: A34
- TechSpec Core Height (in): 15.75
- TechSpec Core Length (in): 28.15
- TechSpec Core Thickness (in): 1.42
- TechSpec DPI: 2415/13005
- TechSpec Drain Plug Thread Size: M12 x 1.5
- TechSpec Engine Codes: V Q35DE
- TechSpec Fluid Capacity (gal): 2.54
- TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
- TechSpec Inlet (in): 1.38
- TechSpec Material: Aluminum
- TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase the optional Mishimoto Universal Transmission Cooler Kit.
- TechSpec Outlet (in): 1.38
- TechSpec Overall Height (in): 29.69
- TechSpec Overall Length (in): 20.28
- TechSpec Overall Width (in): 1.92
- TechSpec Rows: 2
- Transmission Oil Cooler Fitting Type: N/A
- Transmission Oil Cooler Included: No
Extended Information:
- Country of Origin: China
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 33.8 x 24 x 7.8 inches
- Weight: 24.8 POUNDS
