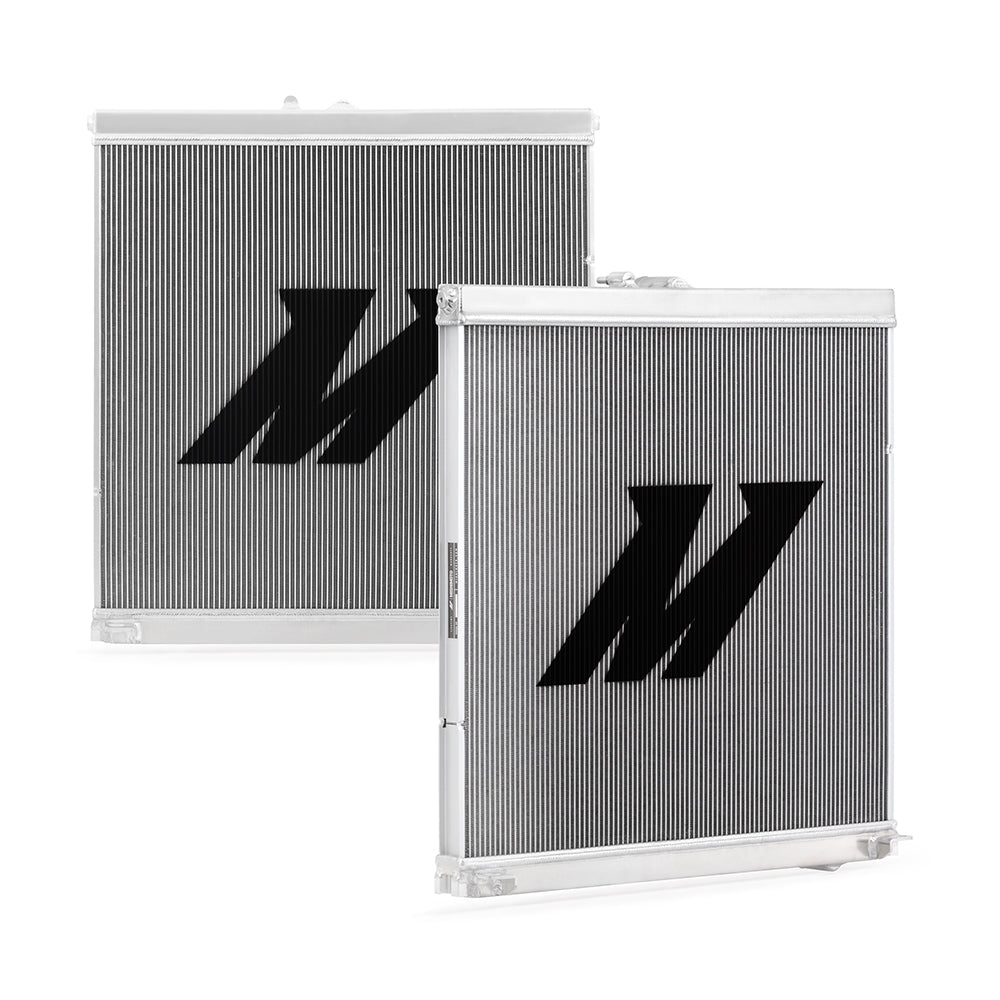

The 2011+ Ford Ranger 3.2L diesel is one of the most capable small trucks on the planet and it deserves a cooling system that's equally capable. This Mishimoto Performance Aluminium Radiator is constructed from high-quality aluminum with precision TIG-welded end tanks for increased durability and resistance to heat and pressure. The direct-fit design means this radiator fits without any trimming or modifications. This Mishimoto 2011+ Ford Ranger 3.2L Diesel Performance Aluminium Radiator includes a magnetic drain plug to keep your coolant free of metallic debris and is backed by our Mishimoto Lifetime Warranty.
- Direct fit for the 2011+ Ford Ranger 3.2L Diesel
- 55-percent increase in core volume over stock radiator
- Full aluminum construction with durable, TIG-welded end tanks
Attributes:
- Brand Name: Mishimoto
- GTIN: 00811580037405
- Core Finish: Uncoated
- Core Height: 0
- Core Length: 0
- Core Material: Aluminum
- Core Row Quantity: 1
- Core Thickness: 1.58
- Down Flow Or Cross Flow Type: Down Flow
- Drain Plug Included: Yes
- Drain Plug Thread Size: M12 - 1.5
- Fluid Capacity: 0
- Inlet Diameter: 1.26
- Inlet Location: Top Center
- Install Difficulty: 2
- Outlet Diameter: 1.14
- Outlet Location: Bottom Left
- Overall Height: 27.28
- Overall Length: 0
- Overall Width: 26.3
- Radiator Cap Included: No
- SellingPoint01: Direct fit for the 2011+ Ford Ranger 3.2L Diesel
- SellingPoint02: 55-percent increase in core volume over stock radiator
- SellingPoint03: Full aluminum construction with durable, TIG-welded end tanks
- SellingPoint04: Includes magnetic drain plug to remove metallic debris from the cooling system
- SellingPoint05: Fits with stock and Mishimoto Silicone Hoses
- SellingPoint06: Mishimoto Lifetime Warranty
- SellingPoint07: N/A
- SellingPoint08: N/A
- SellingPoint09: N/A
- SellingPoint10: N/A
- SellingPoint11: N/A
- SellingPoint12: N/A
- SellingPoint13: N/A
- SellingPoint14: N/A
- SellingPoint15: N/A
- TechSpec Applications: 2011+ Ford Ranger 3.2L Diesel
- TechSpec Chassis Codes: N/A
- TechSpec Core Height (in): N/A
- TechSpec Core Length (in): N/A
- TechSpec Core Thickness (in): 1.58
- TechSpec DPI: N/A
- TechSpec Drain Plug Thread Size: M12 x 1.5
- TechSpec Engine Codes: N/A
- TechSpec Fluid Capacity (gal): N/A
- TechSpec Includes: Mishimoto Performance Aluminum Radiator-- Mishimoto Magnetic Drain Plug--Mounting Hardware--Mishimoto Lifetime Warranty
- TechSpec Inlet (in): 1.26
- TechSpec Material: Aluminum
- TechSpec Note: This radiator reuses the factory mounting grommets. If your grommets are damaged, you may purchase replacements under Ford part #EB3Z-6C681-B
- TechSpec Outlet (in): 1.14
- TechSpec Overall Height (in): 27.28
- TechSpec Overall Length (in): N/A
- TechSpec Overall Width (in): 26.3
- TechSpec Rows: 1
- Transmission Oil Cooler Fitting Type: N/A
- Transmission Oil Cooler Included: No
Extended Information:
- Country of Origin: China
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 32.6 x 8.3 x 29.6 inches
- Weight: 32.65 POUNDS
