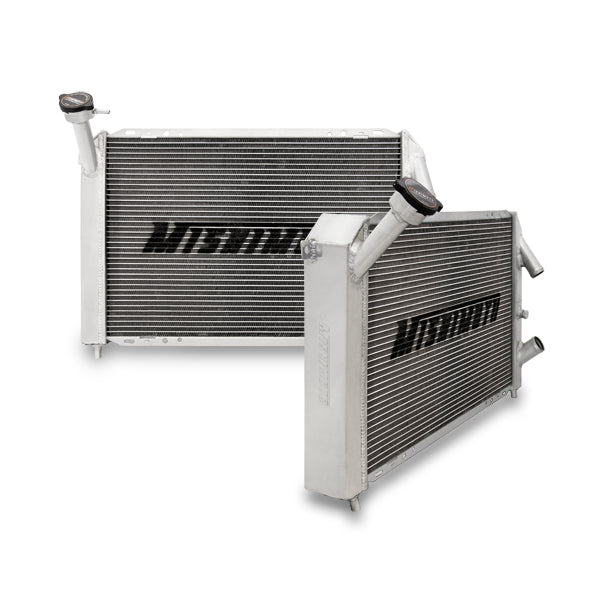

For those with an LS-swapped 1993-1995 Mazda RX-7 looking to enhance the overall performance and lifetime of their engine, the Mishimoto performance aluminum radiator is the ideal cooling system upgrade.With no cutting or modification required for a direct drop-in fitment, installation is easy and effortless.All Mishimoto radiators are designed and engineered to maximize cooling efficiency and most importantly, protect your car from overheating.
- Provides a bolt-in cooling solution which simplifies the engine-swap process
- Full aluminum construction including durable, TIG-welded end tanks
- Features a two-row, 2.17-in thick, efficient brazed aluminum core
Attributes:
- Brand Name: Mishimoto
- GTIN: 00748354804423
- Core Finish: Uncoated
- Core Height: 15.75
- Core Length: 22.2
- Core Material: Aluminum
- Core Row Quantity: 2
- Core Thickness: 2.17
- Down Flow Or Cross Flow Type: Cross Flow
- Drain Plug Included: Yes
- Drain Plug Thread Size: M12 - 1.5
- Fluid Capacity: 0
- Inlet Diameter: 1.38
- Inlet Location: Top Right
- Install Difficulty: 3
- Outlet Diameter: 1.5
- Outlet Location: Bottom Right
- Overall Height: 27.34
- Overall Length: 19.5
- Overall Width: 2.67
- Radiator Cap Included: Yes
- SellingPoint01: Direct fit for the 1993-1995 FD Mazda RX7 with LSX engine swap
- SellingPoint02: Provides a bolt-in cooling solution which simplifies the engine-swap process
- SellingPoint03: Full aluminum construction including durable, TIG-welded end tanks
- SellingPoint04: Features a two-row, 2.17-in thick, efficient brazed aluminum core
- SellingPoint05: Increased fluid capacity and optimal heat dissipation
- SellingPoint06: Provides efficient temperature reduction for street and/or track use
- SellingPoint07: Efficient temperature regulation for both stock and forced induction vehicles
- SellingPoint08: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
- SellingPoint09: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
- SellingPoint10: Mishimoto Lifetime Warranty
- SellingPoint11: N/A
- SellingPoint12: N/A
- SellingPoint13: N/A
- SellingPoint14: N/A
- SellingPoint15: N/A
- TechSpec Applications: N/A
- TechSpec Chassis Codes: FD
- TechSpec Core Height (in): 15.75
- TechSpec Core Length (in): 22.2
- TechSpec Core Thickness (in): 2.17
- TechSpec DPI: 2067
- TechSpec Drain Plug Thread Size: N/A
- TechSpec Engine Codes: LS
- TechSpec Fluid Capacity (gal): N/A
- TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Mishimoto Lifetime Warranty
- TechSpec Inlet (in): 1.38
- TechSpec Material: Aluminum
- TechSpec Note: Some modification may be necessary due to differences in chassis construction and vehicle manufacturing tolerances----This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
- TechSpec Outlet (in): 1.5
- TechSpec Overall Height (in): 27.34
- TechSpec Overall Length (in): 19.5
- TechSpec Overall Width (in): 2.67
- TechSpec Rows: 2
- Transmission Oil Cooler Fitting Type: N/A
- Transmission Oil Cooler Included: No
Extended Information:
- Country of Origin: CN
- Emissions : 4
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 30.6 x 24 x 9.6 inches
- Weight: 22.25 POUNDS
