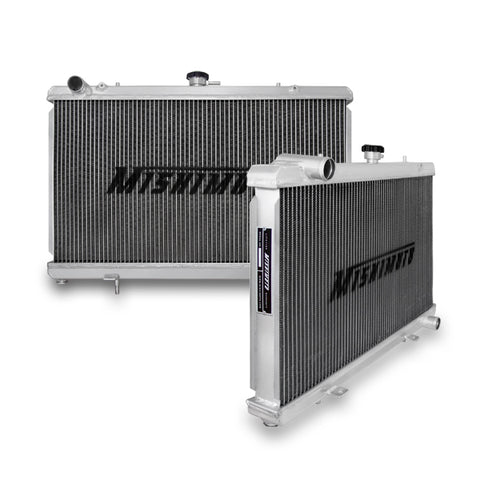

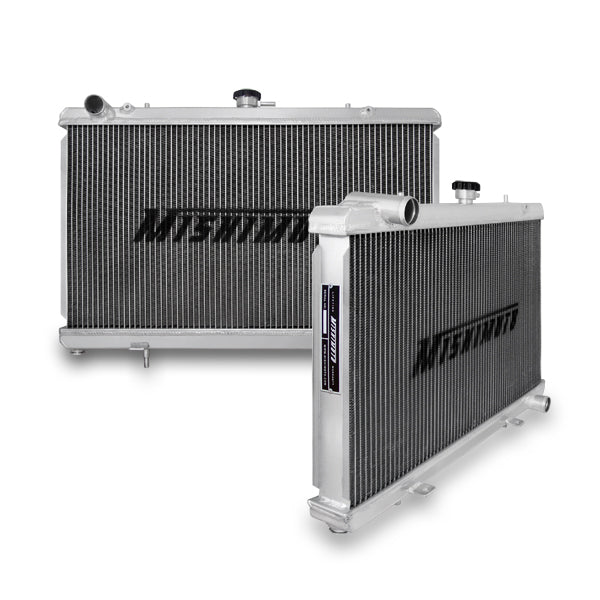

The Mishimoto performance aluminum radiator for the 1989-1994 Nissan 240SX with SR20 Engine is designed and engineered to maximize cooling efficiency by up to 30-percent, boost engine functions, and most importantly, protect your car from overheating whether you drive your vehicle daily or take it for track runs.The Mishimoto aluminum Nissan 240SX radiator features a lightweight dual core, 100-percent brazed aluminum, and polished end tanks, enhancing the overall performance of your engine.Every Mishimoto aluminum radiator is a direct OEM fit, making installation effortless with no cutting or modification required.This is the ideal upgrade to the stock Nissan 240SX radiator.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and a great warranty including accident protection.For even more cooling efficiency check out the S13 fan shroud kit.
- Provides a bolt-in cooling solution which simplifies the engine-swap process
- Full aluminum construction including durable, TIG-welded end tanks
- Features a two-row, 1.97-in thick, efficient brazed aluminum core
Attributes:
- Brand Name: Mishimoto
- GTIN: 00748354797572
- Core Finish: Uncoated
- Core Height: 14.13
- Core Length: 25.12
- Core Material: Aluminum
- Core Row Quantity: 2
- Core Thickness: 1.97
- Down Flow Or Cross Flow Type: Down Flow
- Drain Plug Included: Yes
- Drain Plug Thread Size: M10 - 1.25
- Fluid Capacity: 2.09
- Inlet Diameter: 1.25
- Inlet Location: Top Left
- Install Difficulty: 3
- Outlet Diameter: 1.25
- Outlet Location: Bottom Right
- Overall Height: 19.5
- Overall Length: 26.4
- Overall Width: 2.47
- Radiator Cap Included: Yes
- SellingPoint01: Direct fit for the 1989-1994 Nissan 240SX S13 with SR20 engine swap
- SellingPoint02: Provides a bolt-in cooling solution which simplifies the engine-swap process
- SellingPoint03: Full aluminum construction including durable, TIG-welded end tanks
- SellingPoint04: Features a two-row, 1.97-in thick, efficient brazed aluminum core
- SellingPoint05: Increased fluid capacity and optimal heat dissipation
- SellingPoint06: Provides efficient temperature reduction for street and/or track use
- SellingPoint07: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
- SellingPoint08: Included magnetic drain plug captures harmful metal debris to safeguard cooling system performance
- SellingPoint09: Mishimoto Lifetime Warranty
- SellingPoint10: N/A
- SellingPoint11: N/A
- SellingPoint12: N/A
- SellingPoint13: N/A
- SellingPoint14: N/A
- SellingPoint15: N/A
- TechSpec Applications: 1991-1992 Nissan 240sx LE--1989-1994 Nissan 240sx SE
- TechSpec Chassis Codes: S13
- TechSpec Core Height (in): 14.13
- TechSpec Core Length (in): 25.12
- TechSpec Core Thickness (in): 1.97
- TechSpec DPI: N/A
- TechSpec Drain Plug Thread Size: M10 x 1.25
- TechSpec Engine Codes: SR20DE SR20DET
- TechSpec Fluid Capacity (gal): 2.09
- TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
- TechSpec Inlet (in): 1.25
- TechSpec Material: N/A
- TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
- TechSpec Outlet (in): 1.25
- TechSpec Overall Height (in): 19.5
- TechSpec Overall Length (in): 26.4
- TechSpec Overall Width (in): 2.47
- TechSpec Rows: 2
- Transmission Oil Cooler Fitting Type: N/A
- Transmission Oil Cooler Included: No
Extended Information:
- Country of Origin: China
- Emissions : 4
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 29.3 x 23.5 x 6.3 inches
- Weight: 18.75 POUNDS
