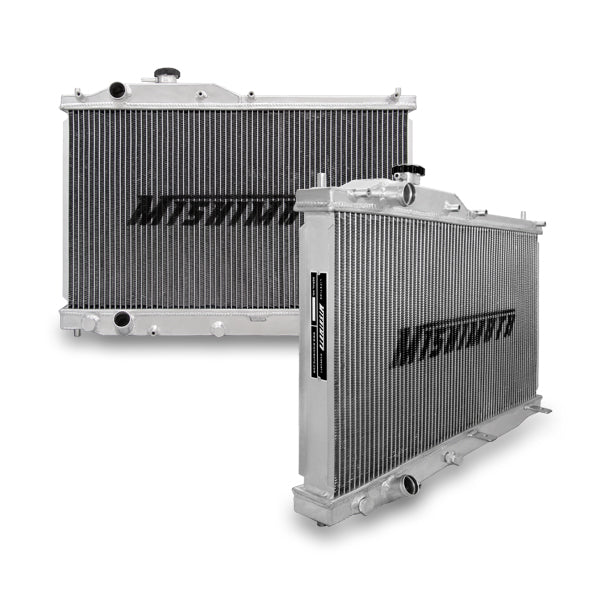

Upgrade your stock S2000 radiator with a Mishimoto performance aluminum radiator to maximize cooling efficiency, boost engine functions and protect your car from overheating.Whether you use your Honda as a daily driver or take it to the track a Mishimoto aluminum radiator will most importantly lower engine temperatures while enhancing the overall performance and lifetime of your vehicles engine.The Mishimoto Honda S2000 radiator features a lightweight dual core, 100-percent brazed aluminum, and polished end tanks.Every Mishimoto performance aluminum radiator is a direct OEM fit, making installation effortless with no cutting or modification required.All Mishimoto radiators come with a Mishimoto high pressure 1.3 bar radiator cap and a great warranty.Also be sure to check out our S2000 silicone hose kit, for even greater cooling efficiency.
- TIG-welded to perfection
- Includes magnetic drain plug
- Includes a high-pressure 1.3 bar Mishimoto radiator cap
Attributes:
- Brand Name: Mishimoto
- GTIN: 00748354797596
- Core Finish: Uncoated
- Core Height: 14.76
- Core Length: 25.67
- Core Material: Aluminum
- Core Row Quantity: 2
- Core Thickness: 1.95
- Down Flow Or Cross Flow Type: Down Flow
- Drain Plug Included: Yes
- Drain Plug Thread Size: M10 - 1.25
- Fluid Capacity: 2.27
- Inlet Diameter: 1.25
- Inlet Location: Top Left
- Install Difficulty: 3
- Outlet Diameter: 1.25
- Outlet Location: Bottom Left
- Overall Height: 26.8
- Overall Length: 20.1
- Overall Width: 3.26
- Radiator Cap Included: Yes
- SellingPoint01: Direct fit for the 2000-2009 Honda S2000
- SellingPoint02: TIG-welded to perfection
- SellingPoint03: Includes magnetic drain plug
- SellingPoint04: Includes a high-pressure 1.3 bar Mishimoto radiator cap
- SellingPoint05: Includes 1/8-in NPT port for use with additional temperature sensors
- SellingPoint06: Lifetime Warranty
- SellingPoint07: N/A
- SellingPoint08: N/A
- SellingPoint09: N/A
- SellingPoint10: N/A
- SellingPoint11: N/A
- SellingPoint12: N/A
- SellingPoint13: N/A
- SellingPoint14: N/A
- SellingPoint15: N/A
- TechSpec Applications: 2008-2009 Honda S2000 CR Edition
- TechSpec Chassis Codes: AP1AP2
- TechSpec Core Height (in): 14.76
- TechSpec Core Length (in): 25.67
- TechSpec Core Thickness (in): 1.95
- TechSpec DPI: 2344
- TechSpec Drain Plug Thread Size: M10 x 1.25
- TechSpec Engine Codes: F20c1F22c1
- TechSpec Fluid Capacity (gal): 2.27
- TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--AP2 Adapter--1/8-inch NPT Plug--Mishimoto Lifetime Warranty
- TechSpec Inlet (in): 1.25
- TechSpec Material: N/A
- TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
- TechSpec Outlet (in): 1.25
- TechSpec Overall Height (in): 26.8
- TechSpec Overall Length (in): 20.1
- TechSpec Overall Width (in): 3.26
- TechSpec Rows: 2
- Transmission Oil Cooler Fitting Type: N/A
- Transmission Oil Cooler Included: No
Extended Information:
- Country of Origin: China
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 7.7 x 24 x 29.9 inches
- Weight: 17.35 POUNDS
