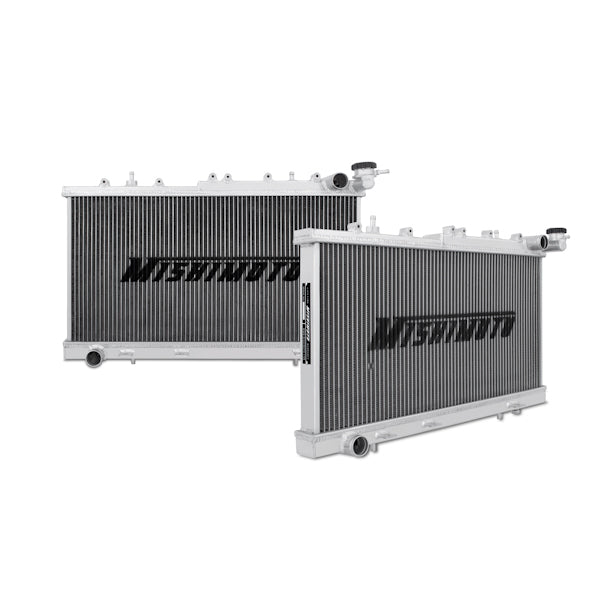

The Mishimoto performance aluminum radiator for the Nissan Sentra w/ SR20 is designed and engineered to maximize cooling efficiency by up to 30-percent, boost engine functions, and protect your car from overheating.The Mishimoto 1991-1999 Nissan Sentra radiator features a lightweight dual core, 100-percent brazed aluminum, and polished end tanks, enhancing the overall performance of your engine.Every Mishimoto aluminum radiator is a direct OEM fit, making installation effortless.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and a great warranty including accident protection.
- Full aluminum construction including durable, TIG-welded end tanks
- Features a two-row, 1.57-in thick, efficient brazed aluminum core
- Increased fluid capacity and optimal heat dissipation
Attributes:
- Brand Name: Mishimoto
- GTIN: 00748354799989
- Core Finish: Uncoated
- Core Height: 25.51
- Core Length: 12.44
- Core Material: Aluminum
- Core Row Quantity: 2
- Core Thickness: 1.57
- Down Flow Or Cross Flow Type: Down Flow
- Drain Plug Included: Yes
- Drain Plug Thread Size: M12 - 1.5
- Fluid Capacity: 1.85
- Inlet Diameter: 1.38
- Inlet Location: Top Right
- Install Difficulty: 3
- Outlet Diameter: 1.38
- Outlet Location: Bottom Left
- Overall Height: 26.4
- Overall Length: 17.2
- Overall Width: 2.07
- Radiator Cap Included: Yes
- SellingPoint01: Direct fit for the 1991-1999 Nissan Sentra SE-R
- SellingPoint02: Full aluminum construction including durable, TIG-welded end tanks
- SellingPoint03: Features a two-row, 1.57-in thick, efficient brazed aluminum core
- SellingPoint04: Increased fluid capacity and optimal heat dissipation
- SellingPoint05: Provides efficient temperature reduction for use on the street, track, or autocross course
- SellingPoint06: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
- SellingPoint07: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
- SellingPoint08: Mishimoto Lifetime Warranty
- SellingPoint09: N/A
- SellingPoint10: N/A
- SellingPoint11: N/A
- SellingPoint12: N/A
- SellingPoint13: N/A
- SellingPoint14: N/A
- SellingPoint15: N/A
- TechSpec Applications: 1991-1994 Nissan Sentra SE-R--1995-1998 Nissan 200sx
- TechSpec Chassis Codes: B13--B14
- TechSpec Core Height (in): 25.51
- TechSpec Core Length (in): 12.44
- TechSpec Core Thickness (in): 1.57
- TechSpec DPI: 1152/1178/1317/1426
- TechSpec Drain Plug Thread Size: M12 x 1.5
- TechSpec Engine Codes: SR20DE--SR20DET
- TechSpec Fluid Capacity (gal): 1.85
- TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
- TechSpec Inlet (in): 1.38
- TechSpec Material: Aluminum
- TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
- TechSpec Outlet (in): 1.38
- TechSpec Overall Height (in): 26.4
- TechSpec Overall Length (in): 17.2
- TechSpec Overall Width (in): 2.07
- TechSpec Rows: 2
- Transmission Oil Cooler Fitting Type: N/A
- Transmission Oil Cooler Included: No
Extended Information:
- Country of Origin: CN
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 31.5 x 23.2 x 5.8 inches
- Weight: 16.5 POUNDS
