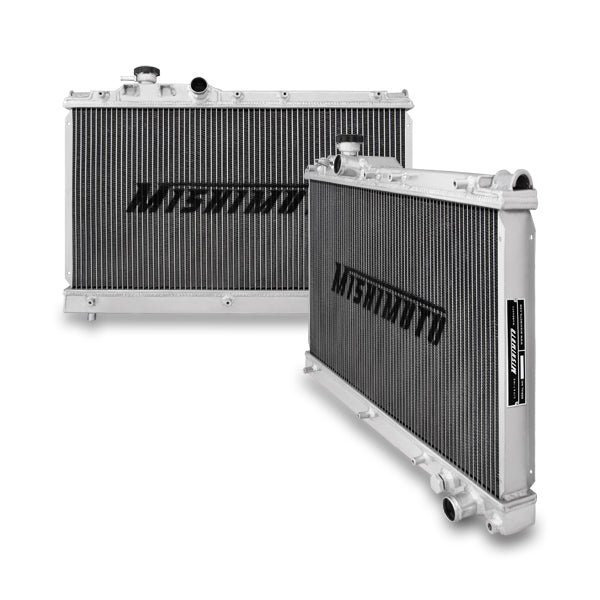

The Toyota Celica is ideal for engine upgrades and modifications that can provide substantial horsepower and torque increases.By replacing your current Celica radiator with a Mishimoto performance aluminum radiator, you will undoubtedly notice a cooler running engine.The Mishimoto Toyota Celica aluminum radiators are designed and engineered to maximize cooling efficiency and protect your car from the overheating.Installation is effortless with a direct OEM fit - no cutting or modification is required.
- Full aluminum construction including durable, TIG-welded end tanks
- Features a two-row, 2.05-in thick, efficient brazed aluminum core
- Increased fluid capacity and optimal heat dissipation
Attributes:
- Brand Name: Mishimoto
- GTIN: 00748354804393
- Core Finish: Uncoated
- Core Height: 13.78
- Core Length: 24.71
- Core Material: Aluminum
- Core Row Quantity: 2
- Core Thickness: 2.05
- Down Flow Or Cross Flow Type: Down Flow
- Drain Plug Included: Yes
- Drain Plug Thread Size: M12 - 1.5
- Fluid Capacity: 2
- Inlet Diameter: 1.26
- Inlet Location: Top Left
- Install Difficulty: 3
- Outlet Diameter: 1.26
- Outlet Location: Bottom Right
- Overall Height: 25.97
- Overall Length: 19.35
- Overall Width: 2.55
- Radiator Cap Included: Yes
- SellingPoint01: Direct fit for the 1994-1999 Toyota Celica GT/GT4 2.0L
- SellingPoint02: Full aluminum construction including durable, TIG-welded end tanks
- SellingPoint03: Features a two-row, 2.05-in thick, efficient brazed aluminum core
- SellingPoint04: Increased fluid capacity and optimal heat dissipation
- SellingPoint05: Provides efficient temperature reduction for use on the street, track, autocross, or rally stage
- SellingPoint06: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
- SellingPoint07: Engineered for use with both stock and highly modified vehicles
- SellingPoint08: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
- SellingPoint09: Mishimoto Lifetime Warranty
- SellingPoint10: N/A
- SellingPoint11: N/A
- SellingPoint12: N/A
- SellingPoint13: N/A
- SellingPoint14: N/A
- SellingPoint15: N/A
- TechSpec Applications: 1994-1998 Celica 1999Celica GT
- TechSpec Chassis Codes: ST202
- TechSpec Core Height (in): 13.78
- TechSpec Core Length (in): 24.71
- TechSpec Core Thickness (in): 2.05
- TechSpec DPI: 1575
- TechSpec Drain Plug Thread Size: M12 x 1.5
- TechSpec Engine Codes: 5SFE
- TechSpec Fluid Capacity (gal): 2
- TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
- TechSpec Inlet (in): 1.26
- TechSpec Material: Aluminum
- TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
- TechSpec Outlet (in): 1.26
- TechSpec Overall Height (in): 25.97
- TechSpec Overall Length (in): 19.35
- TechSpec Overall Width (in): 2.55
- TechSpec Rows: 2
- Transmission Oil Cooler Fitting Type: N/A
- Transmission Oil Cooler Included: No
Extended Information:
- Country of Origin: CN
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 29.6 x 24.2 x 7.7 inches
- Weight: 20.4 POUNDS
