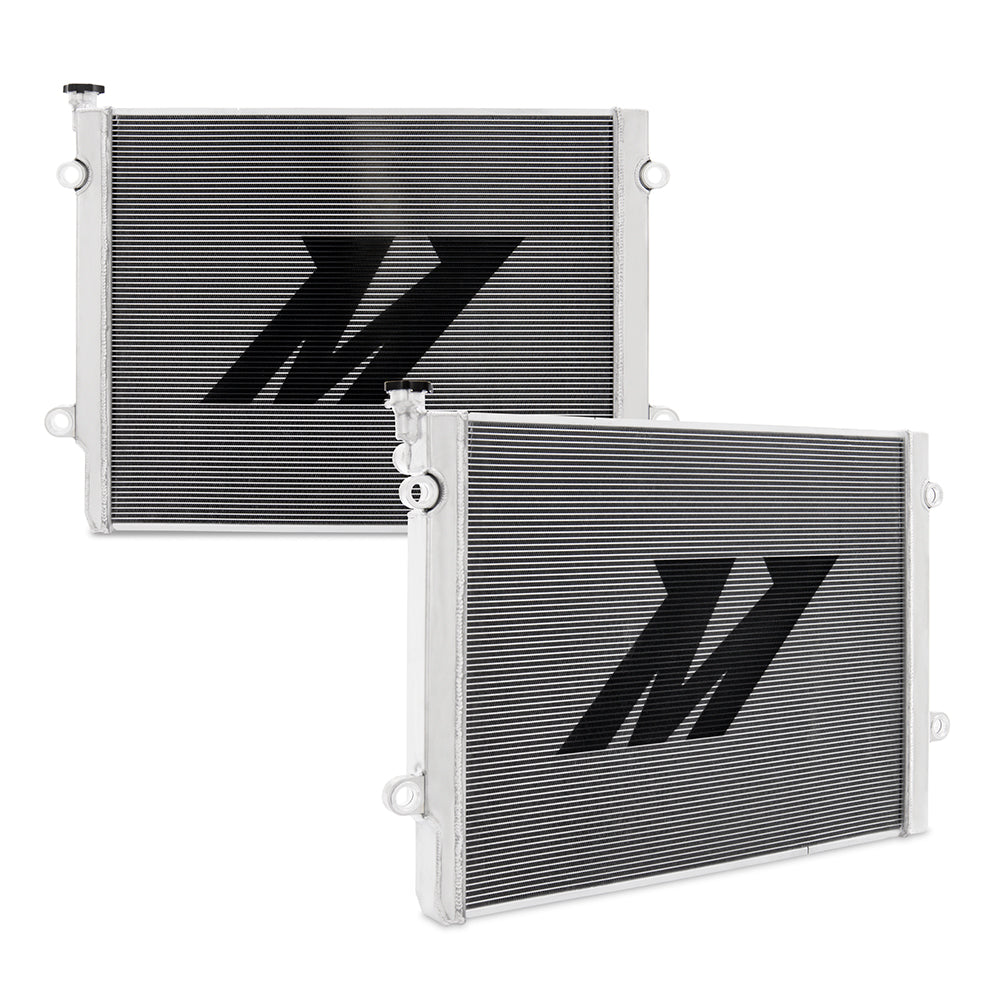

The Toyota Tacoma has been a force in the small pickup category for years and has continued to impress with each generation proving more durable, economical, and practical than the previous. The 2016-2023 Tacoma is no different, offering a tremendous value and that rugged dependability the name is known for. To continue supporting our Tacoma customers, Mishimoto has developed an all-new performance aluminum radiator for the 2.7L/3.5L Tacoma. Our radiator features a full-aluminum design and precisely TIG-welded end tanks for a substantial improvement in durability over the stock plastic radiator. Our aluminum radiator features a 1.65"-thick two-row core with strategically designed fins for maximum cooling efficiency. Packing more fins into our core results in a 91-percent increase in external fin surface area over the stock radiator. This fin surface area increase directly impacts heat transfer, resulting in a 30.2-percent improvement in heat rejection over stock. The stock Tacoma radiator features an in-tank transmission cooler for automatic models. We've incorporated an extremely efficient liquid-to-liquid stacked plate transmission cooler into the end tank of our radiator, ensuring proper control of transmission fluid temperatures. As with all our products, this 2016-2023 Toyota Tacoma Performance Aluminum Radiator includes our signature Mishimoto Lifetime Warranty.
- All-aluminum design with precision TIG-welded end tanks
- Features a two-row 1.65-in core with strategically designed fins for maximum cooling efficiency
- 28-percent increase in core volume
Attributes:
- Brand Name: Mishimoto
- GTIN: 00840197706503
- Core Finish: Uncoated
- Core Height: 21.4
- Core Length: 25.6
- Core Material: Aluminum
- Core Row Quantity: 2
- Core Thickness: 1.65
- Down Flow Or Cross Flow Type: Cross Flow
- Drain Plug Included: No
- Drain Plug Thread Size: M12 - 1.5
- Fluid Capacity: 0
- Inlet Diameter: 1.38
- Inlet Location: Top Right
- Install Difficulty: 3
- Outlet Diameter: 1.38
- Outlet Location: Bottom Left
- Overall Height: 22.2
- Overall Length: 30.9
- Overall Width: 2.2
- Radiator Cap Included: Yes
- SellingPoint01: Direct fit for 2016-2023 Toyota Tacoma with 2.7L/3.5L
- SellingPoint02: All-aluminum design with precision TIG-welded end tanks
- SellingPoint03: Features a two-row 1.65-in core with strategically designed fins for maximum cooling efficiency
- SellingPoint04: 28-percent increase in core volume
- SellingPoint05: 91-percent increase in external fin surface area for greater heat transfer
- SellingPoint06: 30.2-percent improvement in heat rejection
- SellingPoint07: An efficient in-tank liquid-to-liquid stacked plate transmission cooler provides optimal control of transmission fluid temperatures
- SellingPoint08: Includes Mishimoto Magnetic Drain Plug to capture metallic debris within the cooling system
- SellingPoint09: Mishimoto Lifetime Warranty
- SellingPoint10: N/A
- SellingPoint11: N/A
- SellingPoint12: N/A
- SellingPoint13: N/A
- SellingPoint14: N/A
- SellingPoint15: N/A
- TechSpec Applications: Toyota Tacoma I4 (2.7) 2016-2023 --Toyota Tacoma V6 (3.5) 2016-2023
- TechSpec Chassis Codes: N300
- TechSpec Core Height (in): 21.4
- TechSpec Core Length (in): 25.6
- TechSpec Core Thickness (in): 1.65
- TechSpec DPI: N/A
- TechSpec Drain Plug Thread Size: N/A
- TechSpec Engine Codes: 2TR-FE--2GR-FKS
- TechSpec Fluid Capacity (gal): N/A
- TechSpec Includes: Aluminum Radiator--(4) Front Bushing Adapter Inserts--(4) Rear Bushing Adapter Inserts--Mishimoto Lifetime Warranty
- TechSpec Inlet (in): 1.38
- TechSpec Material: Aluminum
- TechSpec Note: N/A
- TechSpec Outlet (in): 1.38
- TechSpec Overall Height (in): 22.2
- TechSpec Overall Length (in): 30.9
- TechSpec Overall Width (in): 2.2
- TechSpec Rows: 2
- Transmission Oil Cooler Fitting Type: N/A
- Transmission Oil Cooler Included: Yes
Extended Information:
- Country of Origin: CN
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 20.68 x 20.68 x 20.68 inches
- Weight: 32.8 POUNDS
