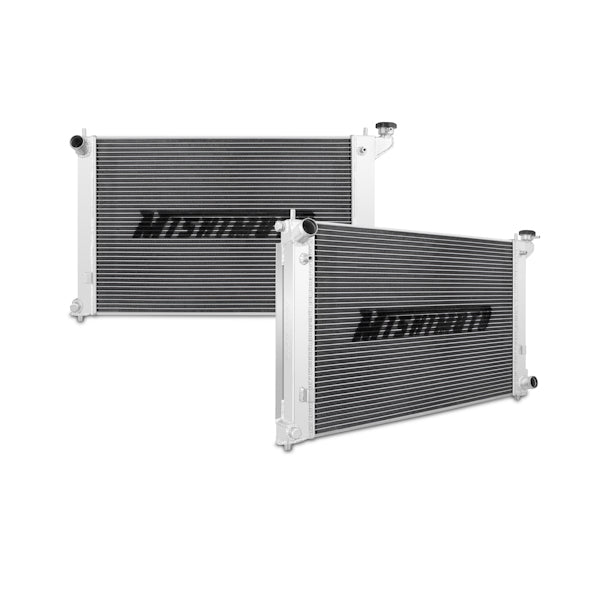

The Mishimoto Performance Aluminum Radiator for the Scion tC has been designed and engineered to maximize cooling efficiency by up to 30-percent and protect your car from overheating.Mishimoto now offers the first performance radiator available for the 2005-2010 Scion tC featuring a lightweight dual core, 100-percent brazed aluminum, and polished end tanks.Every Mishimoto performance radiator is designed for a direct OEM fit making installation effortless with no cutting or modification required.This is the perfect upgrade to your stock Scion tC radiator.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and a great warranty including accident protection! For even more cooling efficiency check out the Mishimoto'scion tC hose kit.
- Full aluminum construction including durable, TIG-welded end tanks
- Features a two-row, 1.57-in thick, efficient brazed aluminum core
- Increased fluid capacity and optimal heat dissipation
Attributes:
- Brand Name: Mishimoto
- GTIN: 00748354797626
- Core Finish: Uncoated
- Core Height: 16.06
- Core Length: 23.62
- Core Material: Aluminum
- Core Row Quantity: 2
- Core Thickness: 1.57
- Down Flow Or Cross Flow Type: Cross Flow
- Drain Plug Included: Yes
- Drain Plug Thread Size: M12 - 1.5
- Fluid Capacity: 2.03
- Inlet Diameter: 1.34
- Inlet Location: Top Left
- Install Difficulty: 3
- Outlet Diameter: 1.34
- Outlet Location: Bottom Right
- Overall Height: 30.5
- Overall Length: 18.2
- Overall Width: 2.07
- Radiator Cap Included: Yes
- SellingPoint01: Direct fit for the 2005-2010 Scion tC 2.4L
- SellingPoint02: Full aluminum construction including durable, TIG-welded end tanks
- SellingPoint03: Features a two-row, 1.57-in thick, efficient brazed aluminum core
- SellingPoint04: Increased fluid capacity and optimal heat dissipation
- SellingPoint05: Provides efficient temperature reduction for use on the street or track
- SellingPoint06: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
- SellingPoint07: Engineered for use with both stock and highly modified vehicles
- SellingPoint08: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
- SellingPoint09: Mishimoto Lifetime Warranty
- SellingPoint10: N/A
- SellingPoint11: N/A
- SellingPoint12: N/A
- SellingPoint13: N/A
- SellingPoint14: N/A
- SellingPoint15: N/A
- TechSpec Applications: 2007-2008 Scion tC SPEC
- TechSpec Chassis Codes: ANT20
- TechSpec Core Height (in): 16.06
- TechSpec Core Length (in): 23.62
- TechSpec Core Thickness (in): 1.57
- TechSpec DPI: 2776
- TechSpec Drain Plug Thread Size: M12 x 1.5
- TechSpec Engine Codes: 2AZFE
- TechSpec Fluid Capacity (gal): 2.03
- TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
- TechSpec Inlet (in): 1.34
- TechSpec Material: Aluminum
- TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
- TechSpec Outlet (in): 1.34
- TechSpec Overall Height (in): 30.5
- TechSpec Overall Length (in): 18.2
- TechSpec Overall Width (in): 2.07
- TechSpec Rows: 2
- Transmission Oil Cooler Fitting Type: N/A
- Transmission Oil Cooler Included: No
Extended Information:
- Country of Origin: CN
- Emissions : 4
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 36.5 x 24.8 x 9 inches
- Weight: 22.3 POUNDS
