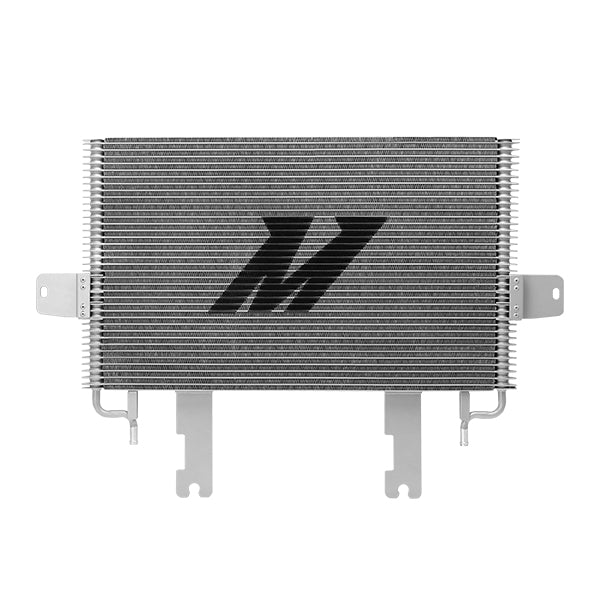

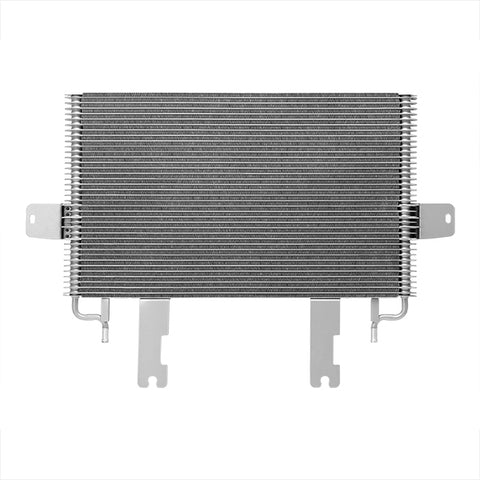

Heavy loads are no match for a 2003-2007 6.0L Powerstroke equipped with the Mishimoto 6.0 transmission cooler. Complement your cooling system with the latest addition to Mishimoto's 6.0 Powerstroke performance parts, the all-new 6.0 transmission cooler. The stock 6.0 Powerstroke transmission cooler does an ample job of keeping temperatures down, but as the loads increase, so do transmission temps. The 37-row Mishimoto's stacked plate cooler provides a larger surface area over both of the stock coolers. Core volume is increased by a whopping 21-percent, and fluid capacity is increased by 1/3 qt. With the Mishimoto 6.0 transmission cooler, high transmission fluid temperatures will be the least of your worries. The increased size of this 6.0L transmission cooler provides a proven 10+ F drop in transmission fluid temperature! No modifications are necessary for installation, and, just like all Mishimoto 6.0 Powerstroke parts, this cooler comes with the Mishimoto Lifetime Warranty.
- Proven 10F (5.6C) drop in transmission fluid temperature with no additional fluid pressure drop
- No modification necessary for installation, functions with all stock equipment
- 37-row stacked-plate fluid cooler provides larger surface area over even the largest stock 31-row transmission cooler
Attributes:
- Brand Name: Mishimoto
- GTIN: 00748354027952
- Core Height: 16.13
- Core Material: Aluminum
- Core Thickness: 1.25
- Core Width: 25.25
- Electric Fan: No
- Finish: Natural Aluminum
- Grade Type: Performance
- Height: 23.5
- Inlet Diameter: 0.5
- Install Difficulty: 3
- Line Included: No
- Mounting Hardware Included: Yes
- Outlet Diameter: 0.5
- SellingPoint01: Direct fit for the 2003-2007 Ford 6.0L Powerstroke
- SellingPoint02: Proven 10F (5.6C) drop in transmission fluid temperature with no additional fluid pressure drop
- SellingPoint03: No modification necessary for installation, functions with all stock equipment
- SellingPoint04: 37-row stacked-plate fluid cooler provides larger surface area over even the largest stock 31-row transmission cooler
- SellingPoint05: Transmisson cooler core has a 21-percent increase in core volume compared to the factory 31-row transmission cooler
- SellingPoint06: Increases transmission fluid capacity by 1/3 qt
- SellingPoint07: Includes durable SAE J1532 hose designed specifically for use with transmission fluid
- SellingPoint08: Mishimoto Lifetime Warranty
- SellingPoint09: N/A
- SellingPoint10: N/A
- SellingPoint11: N/A
- SellingPoint12: N/A
- SellingPoint13: N/A
- SellingPoint14: N/A
- SellingPoint15: N/A
- TechSpec Applications: 2003-2007 Ford F-250 w/ 6.0L Powerstroke--2003-2007 Ford F-350 w/ 6.0L Powerstroke--2003-2007 Ford F-450 w/ 6.0L Powerstroke----Also fits 1999-2003 Ford Superduty trucks with the 7.3 engine, however, the transmission cooler lines must be changed to ½" OD prior to installation.
- TechSpec Caution: N/A
- TechSpec Chassis Codes: N/A
- TechSpec Core Construction: N/A
- TechSpec Core Height (in): 16.13
- TechSpec Core Length (in): 25.25
- TechSpec Core Thickness (in): 1.25
- TechSpec Engine Codes: 6.0L Powerstroke
- TechSpec Fluid Capacity (qts): N/A
- TechSpec Includes: Mishimoto Stacked-Plate Transmission Cooler--Mounting Hardware--Mishimoto Lifetime Warranty
- TechSpec Inlet: N/A
- TechSpec Installation Notes: N/A
- TechSpec Note: Will not work with vehicles that came equipped with a high mounted power steering cooler. These vehicles will need to relocate the power steering cooler to the lower mounting location.
- TechSpec Outlet: N/A
- TechSpec Overall Height (in): 23.5
- TechSpec Overall Length (in): 34
- TechSpec Overall Width (in): 1.34
- TechSpec Rows: 37
- TechSpec Transmission Codes: 5R110--5R110W
- Thickness: 1.34
- Width: 0
Extended Information:
- Country of Origin: China
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 36 x 25.2 x 5 inches
- Weight: 17.76 POUNDS
