no more replacing the entire cooler if the thermostat fails. Owners in cold climates can still enjoy the fast warm-up times that the thermostat provides, while owners in hot climates can choose to bypass the thermostat by replacing it with the supplied stainless-steel bypass plug. To make this cooler even easier to install and service, Mishimoto'saves you the hassle of removing seized fittings. The provided CNC-machined, stainless steel hose barb fittings let you cut to the chase, literally. These fittings and the supplied transmission cooler hose allow you to remove the quick-disconnect fittings and connect the stock soft-line to the Mishimoto cooler. Like all Mishimoto products, this transmission cooler is backed up by our Lifetime Warranty
- Fits all 2003-2009 Dodge Ram 5.9L and 6.7L Cummins
- 212-percent Increase in core volume
- 244-percent Increase in fluid capacity
Attributes:
- Brand Name: Mishimoto
- GTIN: 00811580033513
- Core Height: 10.94
- Core Material: Aluminum
- Core Thickness: 0.87
- Core Width: 26
- Electric Fan: No
- Finish: Natural Aluminum
- Grade Type: Performance
- Height: 0
- Inlet Diameter: 0.5
- Install Difficulty: 3
- Line Included: Yes
- Mounting Hardware Included: Yes
- Outlet Diameter: 0.5
- SellingPoint01: Fits all 2003-2009 Dodge Ram 5.9L and 6.7L Cummins
- SellingPoint02: 212-percent Increase in core volume
- SellingPoint03: 244-percent Increase in fluid capacity
- SellingPoint04: Includes fully serviceable thermostat for fast warm-up in cold climates and thermostat bypass for constant cooling in hot climates
- SellingPoint05: Stacked-plate design for tough and reliable cooling
- SellingPoint06: Eliminates corrosion-prone quick-disconnect fittings
- SellingPoint07: Available -8ORB to -8AN adapters allow the use of AN transmission fluid lines. (2 required)
- SellingPoint08: Patent numberD912,701
- SellingPoint09: Includes durable SAE J1532 hose designed specifically for use with transmission fluid
- SellingPoint10: Mishimoto Lifetime Warranty
- SellingPoint11: N/A
- SellingPoint12: N/A
- SellingPoint13: N/A
- SellingPoint14: N/A
- SellingPoint15: N/A
- TechSpec Applications: Applicable with 47RE, 48RE, and 68RFE Transmissions----Dodge Ram 2500 I6 (5.9L) 2003-2007--Dodge Ram 2500 I6 (6.7L) 2007-2009--Dodge Ram 3500 I6 (5.9L) 2003-2007--Dodge Ram 3500 I6 (6.7L) 2007-2009--Dodge Ram 4500 I6 (6.7L) 2008-2009--Dodge Ram 5500 I6 (6.7L) 2008-2009
- TechSpec Caution: N/A
- TechSpec Chassis Codes: N/A
- TechSpec Core Construction: N/A
- TechSpec Core Height (in): 10.94
- TechSpec Core Length (in): 26
- TechSpec Core Thickness (in): 0.87
- TechSpec Engine Codes: 5.9L--6.7L Cummins
- TechSpec Fluid Capacity (qts): N/A

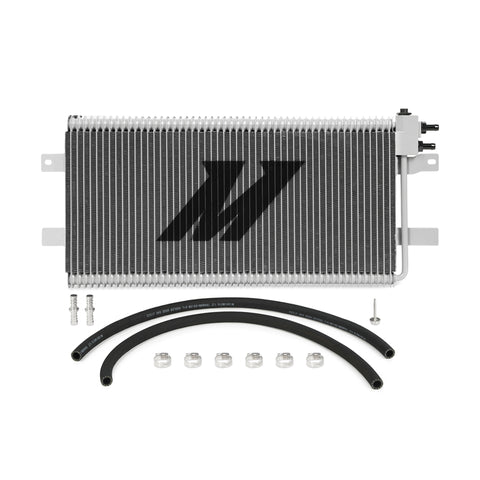

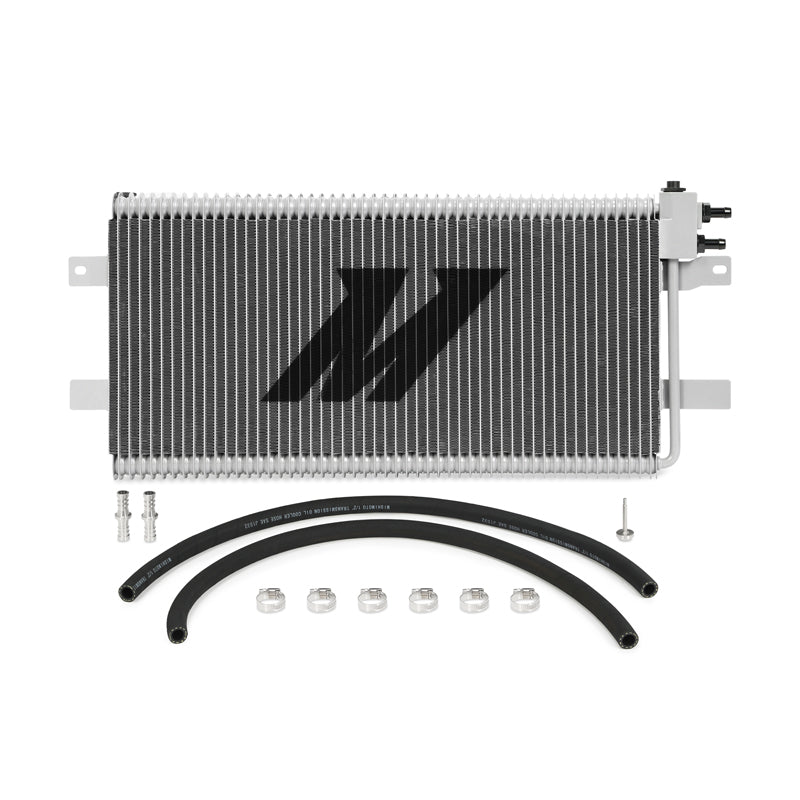

- TechSpec Includes: Mishimoto Stacked-Plate Transmission Cooler--High-Pressure Transmission Cooler Lines--Removable Thermostat--Removable Thermostat Bypass--CNC-Machined Stainless Steel Barbed Fittings--CNC-Machined Aluminum 3/4-in-16 ORB to Hose Barb Fittings--Worm Gear Clamps--Mishimoto Lifetime Warranty
- TechSpec Inlet: N/A
- TechSpec Installation Notes: N/A
- TechSpec Note: Patent #D912701--------This kit requires cutting of the stock transmission cooler lines to remove the quick-disconnect fittings. Mishimoto provides CNC-machined stainless steel hose barb fittings to splice the supplied transmission cooler line with the stock soft-lines. Please see installation instructions for more details.
- TechSpec Outlet: N/A
- TechSpec Overall Height (in): N/A
- TechSpec Overall Length (in): N/A
- TechSpec Overall Width (in): N/A
- TechSpec Rows: 48
- TechSpec Transmission Codes: 47RE--48RE--68RFE
- Thickness: 0
- Width: 0
Extended Information:
- Country of Origin: China
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 15.7 x 4.3 x 33.5 inches
- Weight: 12.8 POUNDS
