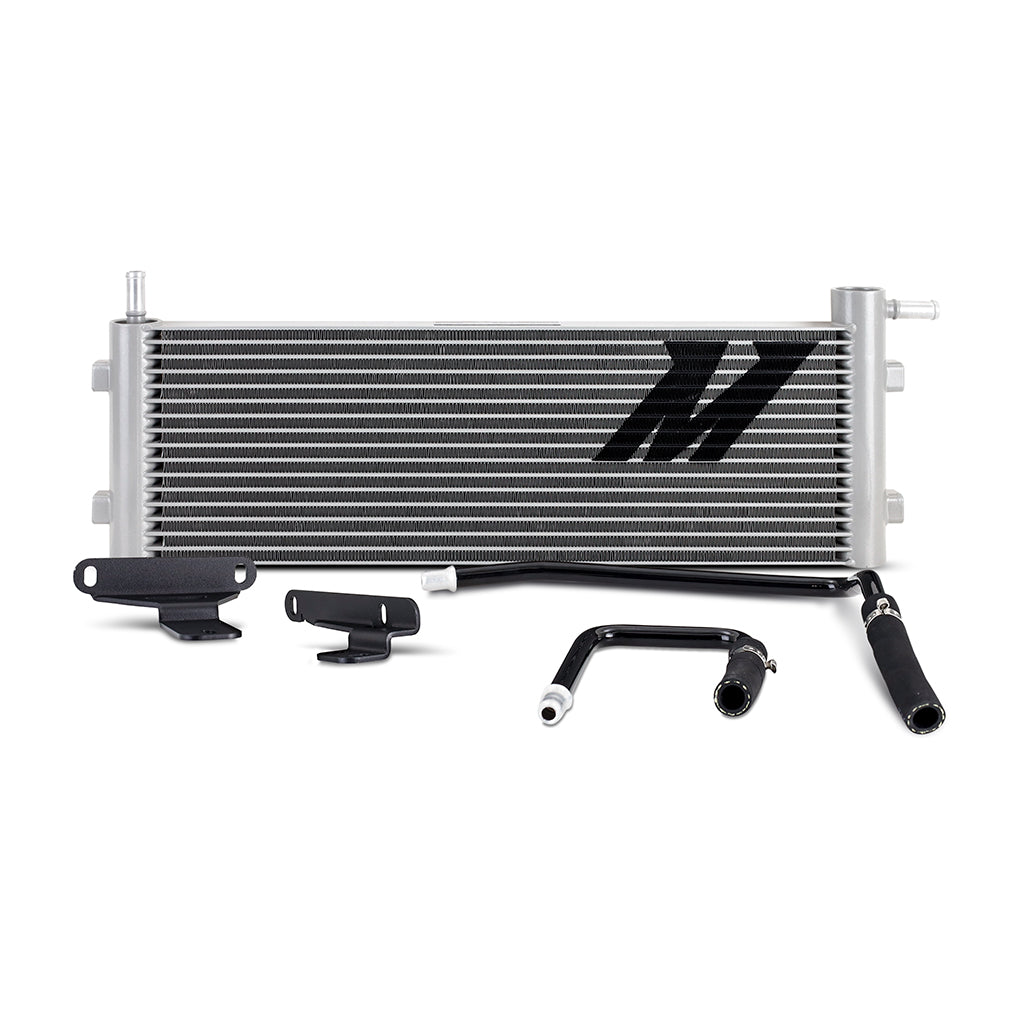

Mishimoto's transmission cooler is designed to be a direct fit for the 2010-2012 Dodge 2500/3500 6.7L Cummins and features a tube and fin design optimal for heavy load towing and rapid load changes. This transmission cooler boasts a 60% increase in core volume and an 86% increase in external fin area for superior cooling and heat dissipation. It also pairs with an optional line kit that helps bypass the factory transmission cooler, as a transmission failure can contaminate that.
- Available optional line kit to bypass OEM cooler and integrated A/C condenser
- 60% increase in core volume for superior cooling capability
- Works with stock and Mishimoto transmission coolers
Attributes:
- Brand Name: Mishimoto
- GTIN: 00840197722664
- Core Height: 6.18
- Core Material: Aluminum
- Core Thickness: 1.26
- Core Width: 19.29
- Electric Fan: No
- Finish: Natural Aluminum
- Grade Type: Performance
- Height: 7.87
- Inlet Diameter: 0.5
- Install Difficulty: 2
- Line Included: Yes
- Mounting Hardware Included: Yes
- Outlet Diameter: 0.5
- SellingPoint01: Direct fit for the 2010-2012 Dodge 2500/3500 6.7L Cummins
- SellingPoint02: Available optional line kit to bypass OEM cooler and integrated A/C condenser [HYPERLINK TO MMTC-RAM-10LK]
- SellingPoint03: 60% increase in core volume for superior cooling capability
- SellingPoint04: Works with stock and Mishimoto transmission coolers
- SellingPoint05: 86% increase in external fin area for improved heat dissipation
- SellingPoint06: Tube and fin design perfect for heavy towing and rapid load changes
- SellingPoint07: Mishimoto Lifetime Warranty
- SellingPoint08: N/A
- SellingPoint09: N/A
- SellingPoint10: N/A
- SellingPoint11: N/A
- SellingPoint12: N/A
- SellingPoint13: N/A
- SellingPoint14: N/A
- SellingPoint15: N/A
- TechSpec Applications: Dodge Ram 2500 5.7L V8 2010--Dodge Ram 2500 6.7L L6 2010--Dodge Ram 3500 6.7L L6 2010--Ram 2500 6.7L L6 2011-2013--Ram 2500 5.7L V8 2011-2012--Ram 3500 6.7L L6 2011-2013--Ram 3500 5.7L V8 2011-2012
- TechSpec Caution: N/A
- TechSpec Chassis Codes: N/A
- TechSpec Core Construction: Tube-And-Fin
- TechSpec Core Height (in): 6.18
- TechSpec Core Length (in): 19.29
- TechSpec Core Thickness (in): 1.26
- TechSpec Engine Codes: 6.7L Cummins
- TechSpec Fluid Capacity (qts): 0.7 (total cooler capacity including lines where applicable)
- TechSpec Includes: (1) Mishimoto Transmission Cooler--(1) Mounting Bracket & Hardware Kit--(1) Line Kit--Mishimoto Lifetime Warranty
- TechSpec Inlet: 1/2"
- TechSpec Installation Notes: N/A
- TechSpec Note: Available optional line kit to bypass OEM cooler and integrated A/C condenser: MMTC-RAM-10LK
- TechSpec Outlet: 1/2"
- TechSpec Overall Height (in): 7.87
- TechSpec Overall Length (in): 22.48
- TechSpec Overall Width (in): 1.54
- TechSpec Rows: 15
- TechSpec Transmission Codes: 68RFE--AS68RC
- Thickness: 1.54
- Width: 0
Extended Information:
- Country of Origin: CN
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1
- Package UOM: BX
- Dimension: 24 x 6 x 10 inches
- Weight: 7.6 POUNDS
