Pressed-on harmonic balancers are the bane of many mechanics' existence. Trying to pry a harmonic balancer off with a screwdriver or prybar in a cramped engine bay can be a nightmare, but with the right tool, it becomes a dream. The Mishimoto harmonic balancer puller set makes removing pressed-on harmonic balancers easy with just a ratchet or wrench. The three steel jaws lock around spoke-style balancers and the center forcing screw evenly pulls the balancer off the crank in no time. The center forcing screw features a 3/4" external hex as well as a 3/8 internal square drive for use with a ratchet or breaker bar. Four center rod lengths make this harmonic balancer puller versatile for many makes and models, and the durable blow-molded case makes it easy to take from job to job. So, if you'd like to avoid the nightmare of removing pressed-on harmonic balancers, get a Mishimoto harmonic balancer puller set, and make the job a dream.
- Steel body and puller arms easily remove pressed-on harmonic balancers
- Versatile design works on any spoke-style balancer with a single center bolt
- Center screw features a 3/4" hex and a 3/8 internal square drive for use with wrenches or ratchets and breaker bars
Attributes:
- Brand Name: Mishimoto
- GTIN: 00840197719589
- Adapters Included: Yes
- Case Included: Yes
- Case Material: Plastic
- Center Bolt Head Size: 3/4 in
- Center Bolt Thread Type Standard: UNF
- Install Difficulty: 1
- Pull Bolts Material: Steel
- Pull Bolts Thread Type Standard: UNF
- Puller Attachment Bolt Quantity: 3
- Puller Finish: Powder Coated
- Puller Jaw Quantity: 3
- Puller Material: Steel
- Puller Type: Jaw
- SAE or Metric: SAE
- SellingPoint01: Steel body and puller arms easily remove pressed-on harmonic balancers
- SellingPoint02: Versatile design works on any spoke-style balancer with a single center bolt
- SellingPoint03: Center screw features a 3/4" hex and a 3/8” internal square drive for use with wrenches or ratchets and breaker bars
- SellingPoint04: Includes four center rods to fit various cranks and pulleys
- SellingPoint05: Durable blow-molded case protects tool when not in use or when traveling
- SellingPoint06: Mishimoto Lifetime Warranty
- SellingPoint07: N/A
- SellingPoint08: N/A
- SellingPoint09: N/A
- SellingPoint10: N/A
- SellingPoint11: N/A
- SellingPoint12: N/A
- SellingPoint13: N/A
- SellingPoint14: N/A
- SellingPoint15: N/A
- TechSpec Applications: N/A
- TechSpec Diameter (Inches): N/A
- TechSpec Engine Codes: N/A

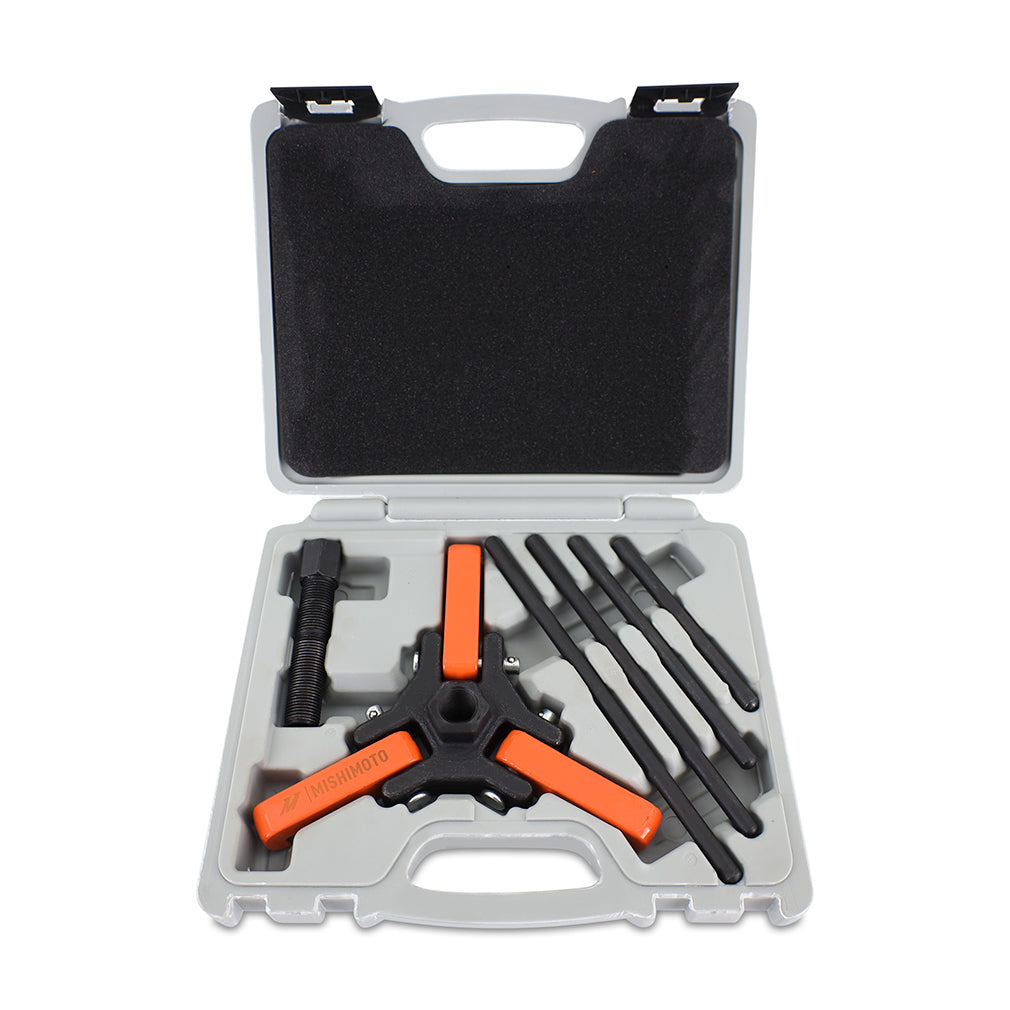

- TechSpec Includes: (1) Harmonic Balancer Puller--(1) Center Screw--(4) Push Rods--Mishimoto Lifetime Warranty
- TechSpec Installation Notes: N/A
- TechSpec Length (Inches): N/A
- TechSpec Material: Steel
- TechSpec Maximum Pressure (PSI): N/A
- TechSpec Maximum Temperature (F): N/A
- TechSpec Minimum Yield Strength: N/A
- TechSpec Note: Thoroughly lubricate center screw before each use to prevent damage to body or screw threads
- TechSpec Overall Height (Inches): N/A
- TechSpec Thread Size: N/A
- TechSpec Ultimate Tensile Strength: N/A
- TechSpec Weight (Ounces): N/A
Extended Information:
- Country of Origin: China
- Emissions : 4
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 10 x 8.5 x 2.7 inches
- Weight: 4.05 POUNDS
