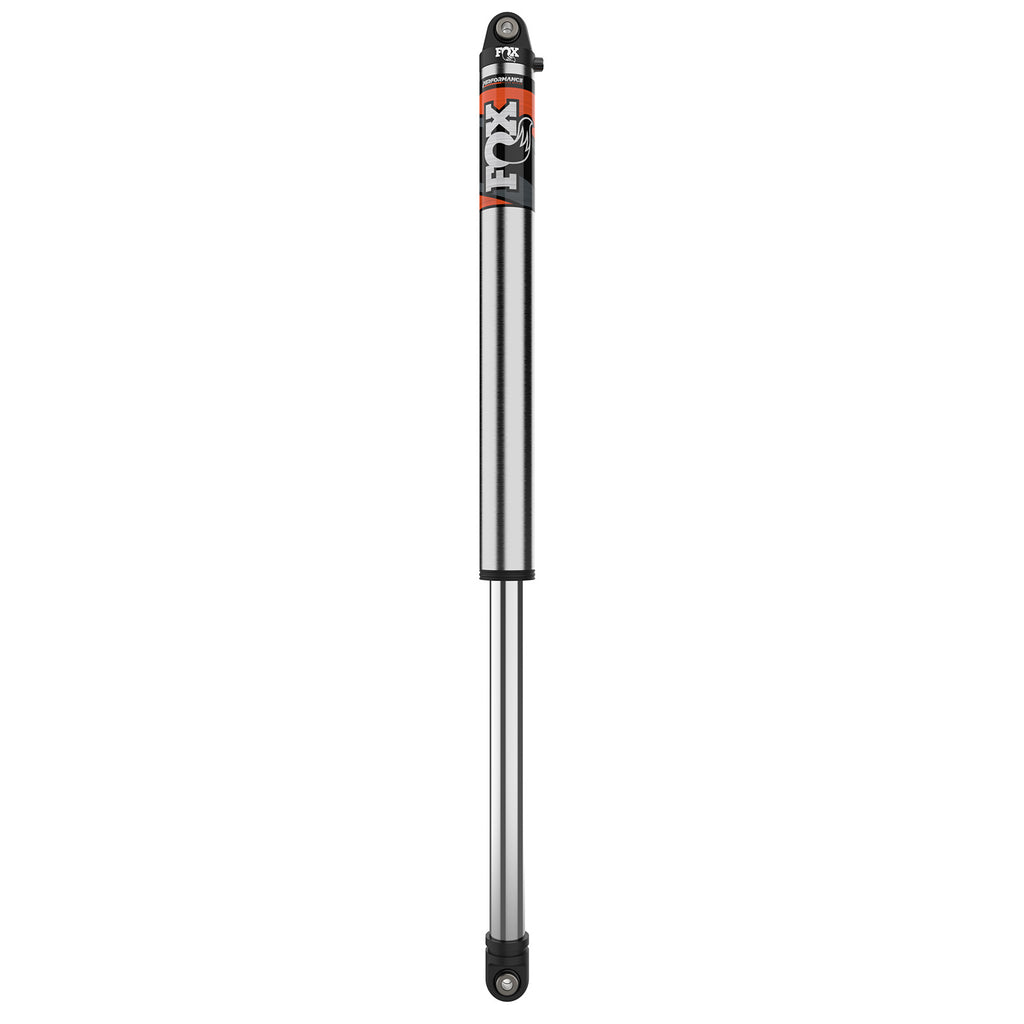

The design of the off-road Performance Elite air shock allows for infinite adjustability of the spring rate by varying the nitrogen charge pressure. FOX's first air shock was invented by Bob Fox back in 1974 and has been highly refined in the 30-plus years we’ve been producing them. The off-road Performance Elite air shock uses the identical race-proven performance damping technology as our other Performance Elite Series off-road shocks, so servicing and valving adjustments are the same. Incredibly strong yet lightweight hollow shock shafts further reduce weight on these shocks that are ideal for competition rock crawlers.
- Durable clear coated, zinc plated seamless alloy body
- Hard chome plated 4130 chromoly steel shaft
- Owner serviceable and rebuildable
- JM92 MIL-SPEC oil developed specifically for off-road racing
- Black Anodized CNC Machined Aluminum Components
Attributes:
- Brand Name: FOX Offroad Shocks
- GTIN: 00692878904568
- Body Diameter (in): 2.5
- Body Finish: Clear Zinc Plated
- Body Material: Steel
- Bottom Mount: Eyelet
- Compressed Length (in): 22.65
- Extended Length (in): 34.78
- Eyelet Length (in): 1.95
- Fox Catalog: OFFROAD
- Label Name: 2.5 PES, A/S, EMUL, 12"
- Mounting: 1/2 x 1-1/2
- Reservoir Type: Emulsion
- Seal Kit: 803-04-039
- Series: Performance Elite
- Shaft Size (in): 1-5/8
- Top Mount: Eyelet
- Travel (in): 12.13
- Type: Air Shock
- Valving: 807-24-304
Extended Information:
- Country of Origin: US
- Emissions : 1
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 47.7500 x 6.8750 x 4.7500 inches
- Weight: 15.0000 POUNDS
