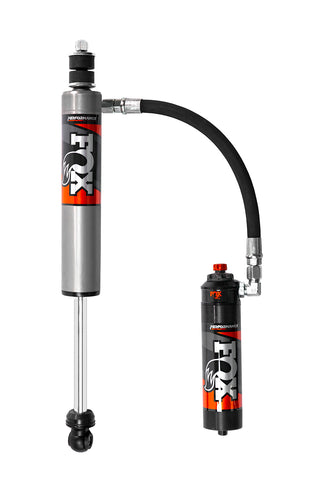

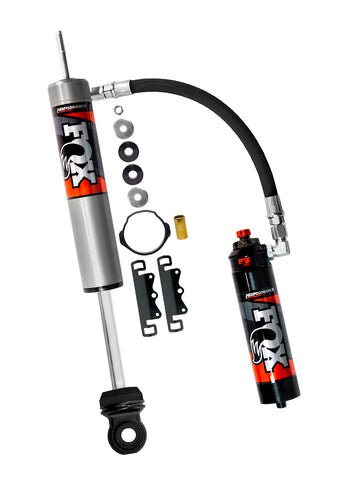

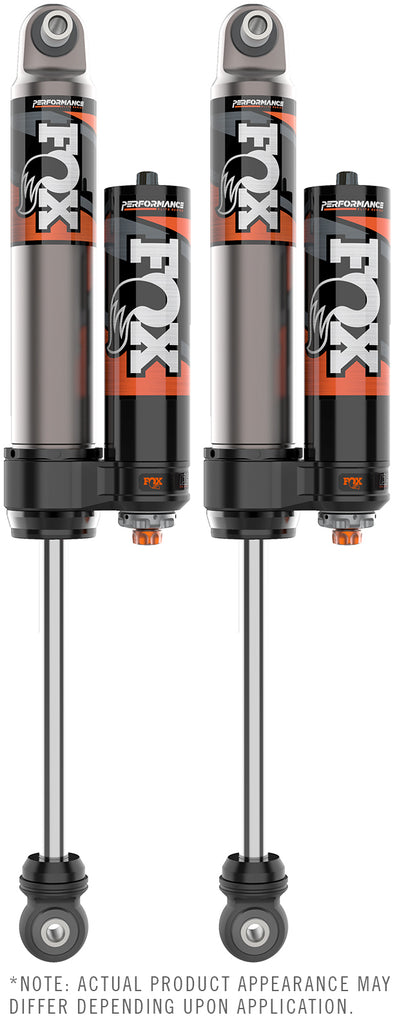

Developed from our off-road race shocks, FOX Performance Elite Series combines race-proven technology with new, cutting-edge features to provide enhanced ride-quality and winning damping performance you can bolt onto your truck or SUV.
- 2.5" impact-extruded and CNC-machined 6061-T6 Type III anodized aluminum body
- 7/8" hard chrome-plated steel shafts
- Redundant sealing pack system

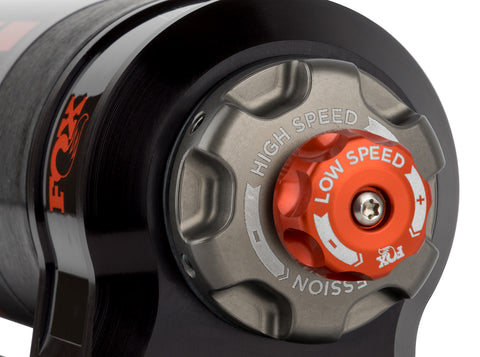

- 2.5" smooth bore and honed seamless alloy reservoir with Dual Speed Compression (DSC) adjuster
- Unlock all travel available in jounce and droop positions
- Maximize comfort and control through any terrain
- Remote reservoirs are mounted to clear aggressive tires at full lock
- Aluminum shock bodies and external reservoirs efficiently dissipate heat by increasing oil capacity
- Larger, high flow piston increases bottom-out resistance and damping in any environment
Attributes:
- Brand Name: FOX Offroad Shocks
- GTIN: 00711745591387
- Adjuster Type: DSC - Dual Speed Compression
- Body Diameter (in): 2.5
- Body Material: Aluminum

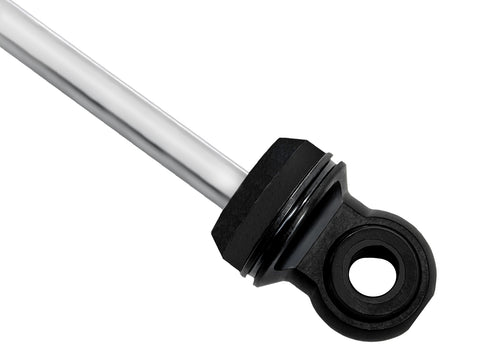

- Bottom Mount: Eyelet
- Compressed Length (in): 19.85
- Extended Length (in): 32.33
- Fox Catalog: TRUCK
- Label Name: Kit: 17-ON Ford SD Rear, 2.5 Truck PES, P/B, 2-3.5" Lift, DSC
- Reservoir Type: Piggyback
- Series: Performance Elite
- Top Mount: Eyelet
- Travel (in): 12.48
- Type: Smooth Body
Extended Information:
- Country of Origin: US
- Emissions : 1
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 40.0000 x 18.5000 x 8.1250 inches
- Weight: 33.0000 lb
