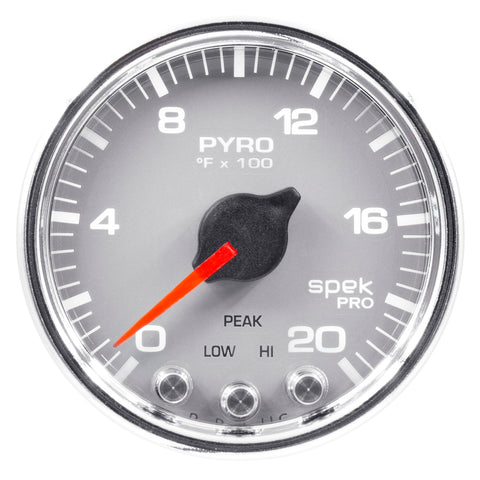

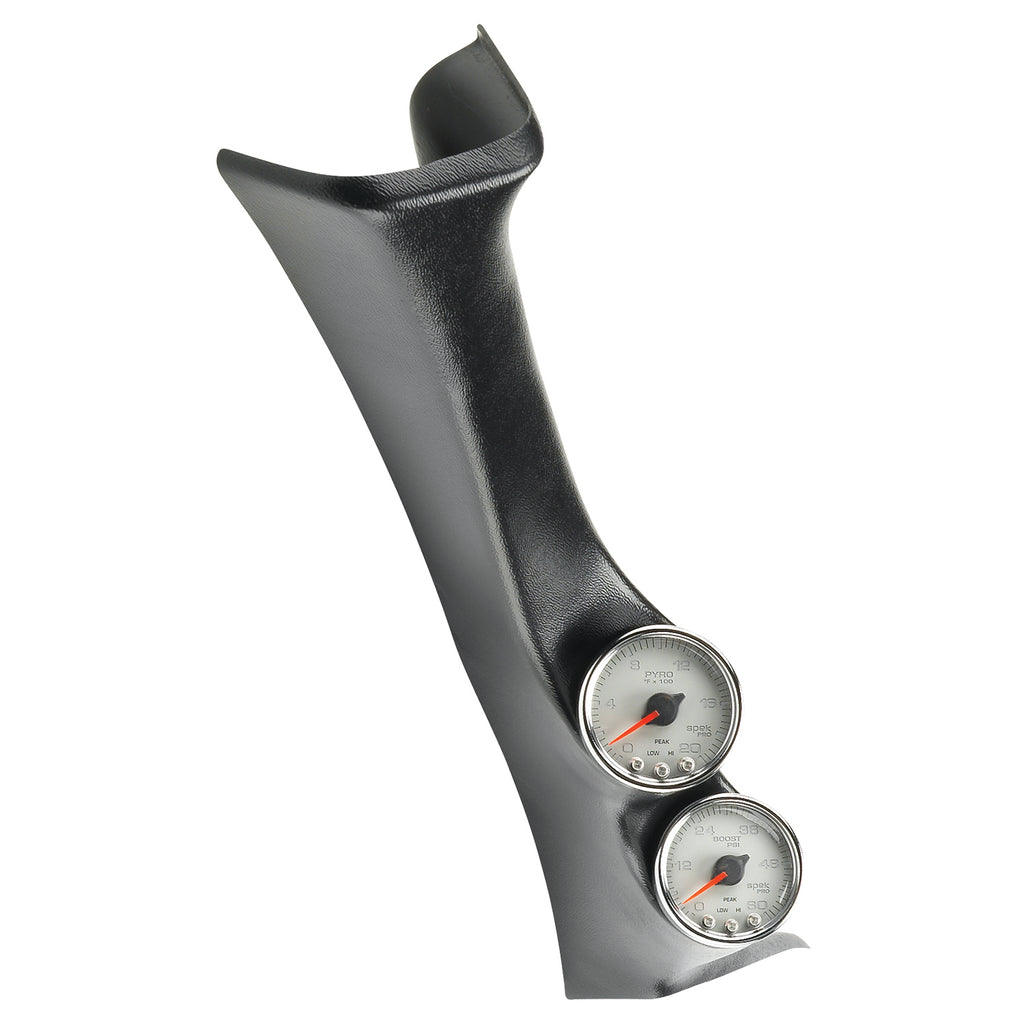

AutoMeter has brought together the most popular diesel gauges into a complete, ready to install pillar kit. The kit includes a pyrometer (EGT), boost gauge, and gauge pillar mount.
- Highly polished chrome bezel
- 7 color user-selectable background illuminations (red, blue, green, white, yellow, orange, and violet) with adjustable brightness for day and night - with independent dimming of dial and pointer.
- Configurable "High" and "Low" warnings using three on-instrument-face buttons
- Pro-Control output enables a 1.5 amp load to activate a relay and trigger your choice of warning lights, external buzzers, fans, pumps, or features such as water/meth/nitrous injection.
- Features a peak recall function, which enables the user to review high gauge readings. The highest reading will be stored by the gauge until it is cleared.
- Includes patented light-weight, spin-on bracket and pre-wired harness for simplified installation.
- Patented Wide Angle dial design provides the largest viewable dial available in a 2-1/16" gauge.
- Precision 280 brushless stepper motor movement provides a quiet, fluid, and accurate pointer movement with superior dial resolution.
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074155482
- Bezel Color: Chrome
- Bezel Style: Spek Round Shoulder
- Cup/Hole Size - Metric - MM: 52.4mm
- Cup/Hole Size - Standard - IN: 2-1/16"
- Dial Color: Silver
- Gauge Type: Pillar Kit
- Includes Mounting Hardware: P12467
- Includes Sensor Unit: P13113, P12709, P13125
- Includes Wire Harness: P19320, P19340, P19370
- Lens Style: Domed, Clear
- Lighting Color: 7 User Selectable Colors
- Lighting Type: LED
- Mounting- Direct or Universal: Direct Fit
- Movement: Electric, Digital Stepper Motor
- Outer Bezel Diameter - Standard: 2-1/16"
- Pointer Color: Fluorescent Red
- Range: 0-60 PSI/0-2000 °F
- Related Item: 2164, BEX-5000, EP-800, 0444, 0423XL
- Series: SPEK-PRO
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 34 x 7 x 5 inches
- Weight: 3.08 POUNDS
PDF:
