SENSOR FUEL LEVEL ADJUSTABLE 240 OHM EMPTY TO 33 OHM FULL SWING-ARM TYPE
SENSOR FUEL LEVEL ADJUSTABLE 240 OHM EMPTY TO 33 OHM FULL SWING-ARM TYPE
SENSOR FUEL LEVEL ADJUSTABLE 240 OHM EMPTY TO 33 OHM FULL SWING-ARM TYPE
SENSOR FUEL LEVEL ADJUSTABLE 240 OHM EMPTY TO 33 OHM FULL SWING-ARM TYPE

SENSOR FUEL LEVEL ADJUSTABLE 240 OHM EMPTY TO 33 OHM FULL SWING-ARM TYPE

  • Sale
  • $59.81

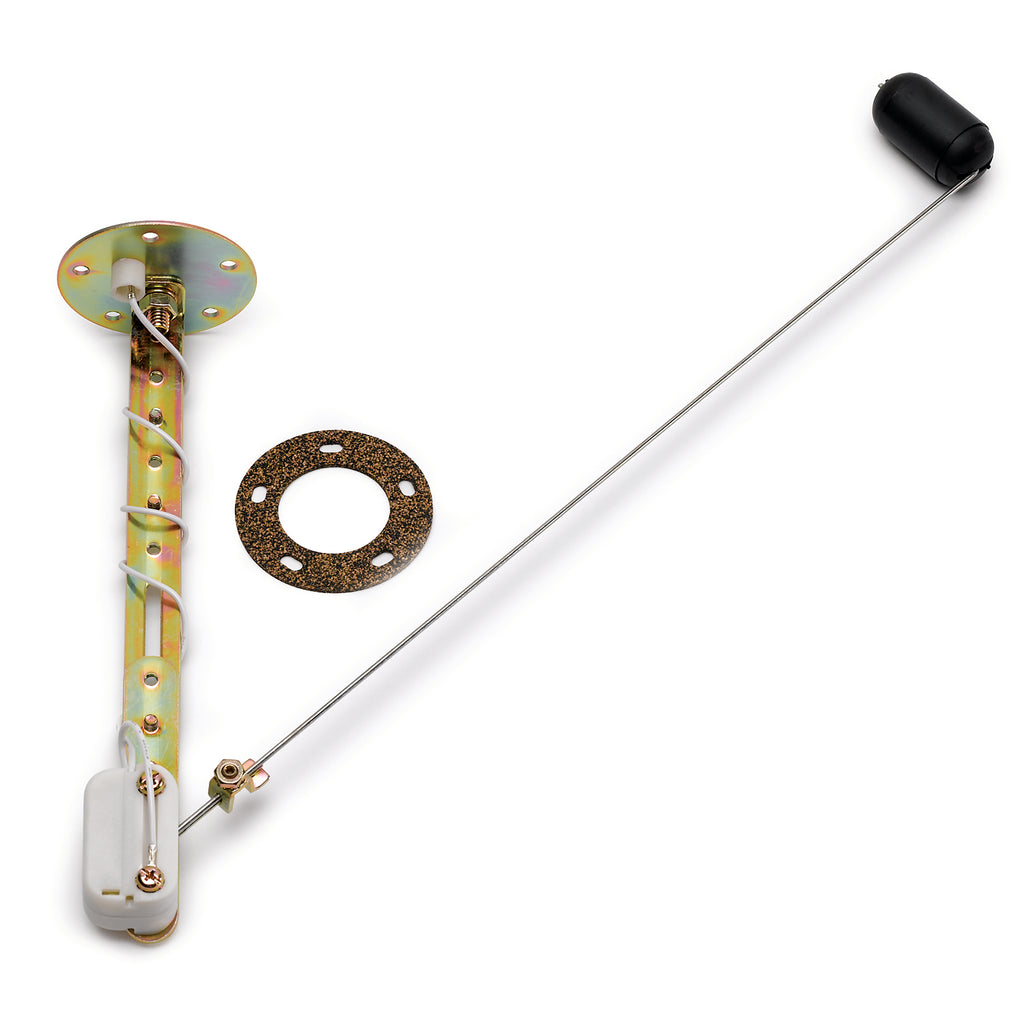

This universal fuel level sensor from AutoMeter is the perfect solution for custom made fuel tanks and installations where the original liquid level sensor is unable to be used. Engineered for top down, drop-in mounting orientation with user-adjustable geometry, this sensor can be configured for tanks with overall depths between 5 and 24 inches and provides an output of 240 ohms Empty to 33 ohms Full.
  • For 240 Ohm Empty / 33 Ohm Fuel Gauge models.
  • Adjustable for 5" - 24" deep tank.
  • Fits standard SAE 5 hole (2.125 in. bolt circle) top mounting flange.

Attributes:

  • Brand Name: AutoMeter
  • GTIN: 00046074032622
  • Cross Sell: 3263, 3298
  • Includes Mounting Hardware: Hardware Included
  • Related Item: BEX-1500, EP-800
  • Series: ACCESSORIES
  • Upsell: 3263, 3298

Extended Information:

  • Country of Origin: TW
  • Emissions : CARB Eligible

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 3 x 16.5 x 2.75 inches
  • Weight: 0.83 POUNDS
