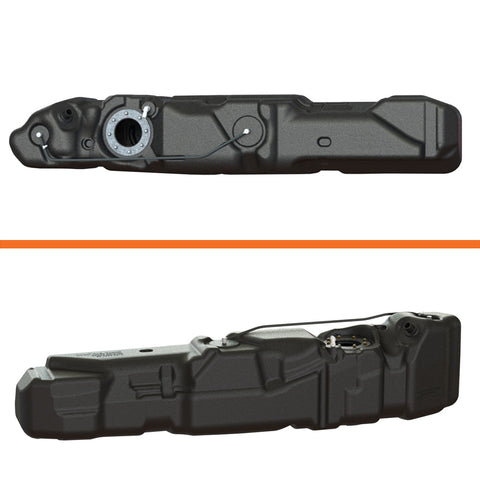

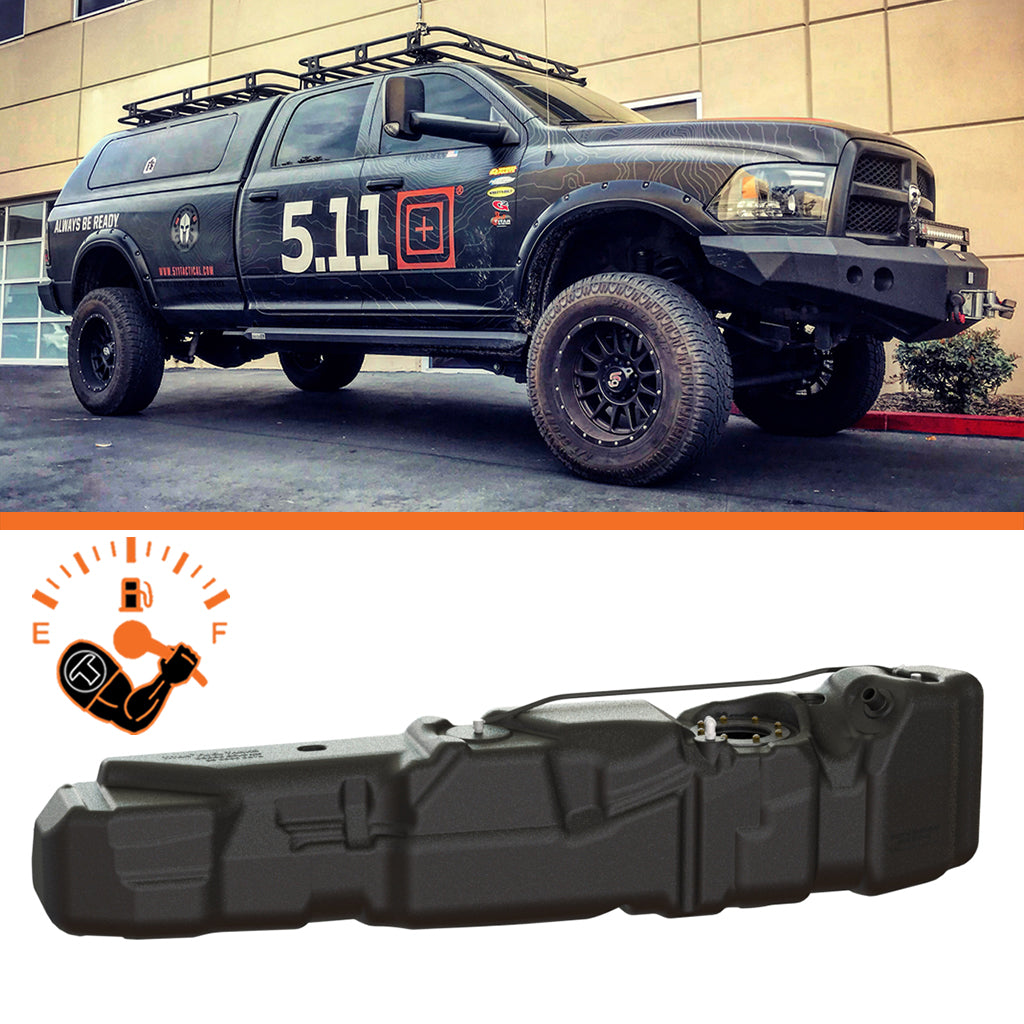

The Titan XXL tank also features minimal hang down below the bottom of the stock tank (approximately only 2.5" lower). Installation is a breeze - no fabrication or cutting required. This tank is a direct fit, bolt-in application, making it the perfect upgrade for your Ram 2500 or 3500 pickup. Application For model years 2013-2024. For 2500 & 3500 Models (single and dual rear wheel) with Cummins Engines. Note: For use with diesel fuel ONLY. Additional Details. The TITAN tank is 20 gallons larger at 55 gallons. The stock tank is only 35 gallons. Will not interfere with powered steps, air bag systems and most other accessories. Our mid-ship, direct replacement fuel tanks are designed to use your trucks' stock/OE sending unit. However, our tanks are compatible with Fleece, AirDog, FASS, etc. Not for use on trucks that were ordered from the factory with the optional larger 48/50 gallon RAM tank.
- Super Durable Military Grade Polymer, Cross-Linked Polyethylene (XLHDPE)
- Nearly 200 Times Less Heat & Cold conductive than Metal Tanks
- No Condensation, No Corrosion, and Easy to Install
- Compatible with most bio-diesel fuel
- Exclusive TITAN Sending Unit Mounting System
- 2013-2024 DODGE/RAM 2500 & 3500(Crew or Quad Cab-Long Bed)
Attributes:
- Brand Name: Titan Fuel Tanks
- GTIN: 00848135001192
- Attached Sump: No
- Baffled Sump: Yes
- California Restriction: No
- Capacity: 55
- Color: Black
- Filler Neck Attached: No
- Fuel Pump Included: No
- Fuel System Compatibility: Electronic Fuel Injection
- Grade Type: Performance
- Increased Capacity (US Gallons): 23
- Material: Polyethylene (PE)
- Material Thickness: 0.25
- Merch Code: Fuel Distribution Parts/Accessories (Automotive)
- Mounting Straps Included: Yes
- O-Ring Included: Yes
- Position: N/A
- Sales in Canada: Yes
- Sending Unit Included: No
- Stock Tank Capacity (US Gallons): 32
- TITAN Tank Capacity (US Gallons): 55
- Truck Freight: No
- USMCA Origin Criterion: B
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each:
- Package UOM:
- Dimension: 22 x 86 x 16 inches
- Weight: 66 POUNDS
