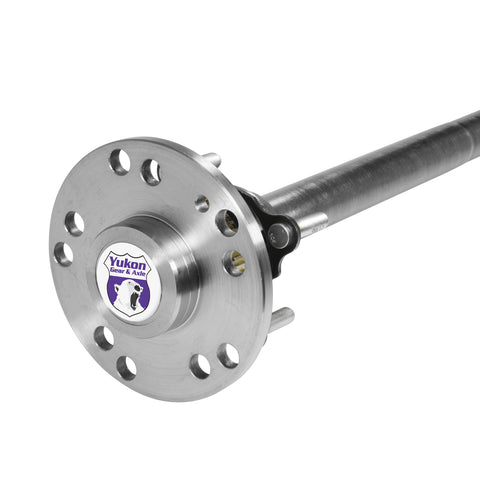

Yukon high-performance axles are built with high-tensile strength 4340 chromoly, use superior production methods that include cold roll formed splines, and feature advanced induction coil heat treating to create an axle of unmatched quality and durability.
- Fits Dana 44 differential
- 30 spline
- Measures 32” long
- For left or right side
- 5 x 5.0” bolt pattern
- Heavy duty 4340 chromoly construction

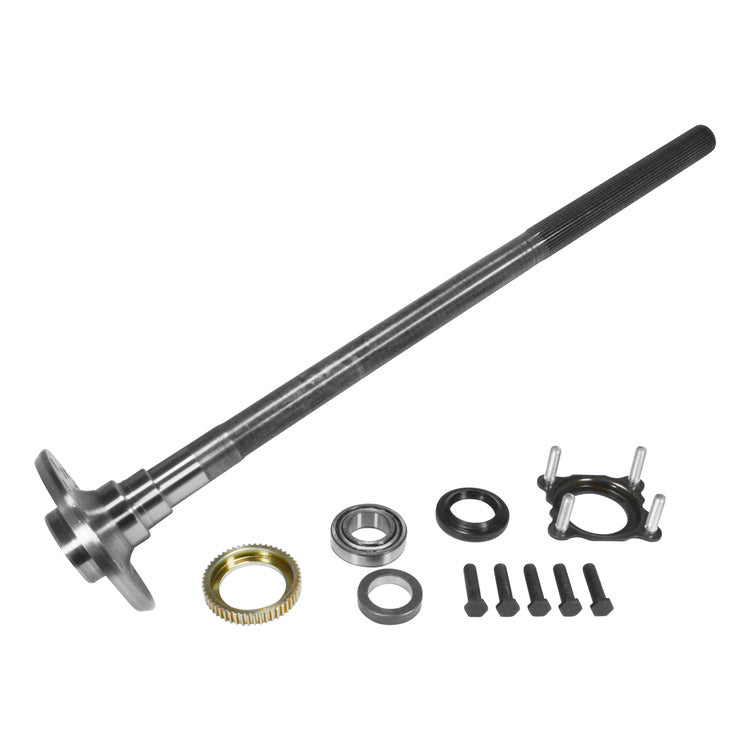

- Includes axle shaft, axle bearing and seal, ABS ring, retainer, and studs
- NOTE: Assembly required. This part does not ship assembled.
Attributes:
- Brand Name: Yukon Gear and Axle
- GTIN: 00883584218302
- 160: No
- 198: 32
- 222: 4340 Nickel Chromoly Steel
- 3381: 30
- 3386: No
- 3387: No
- 9390: No
- 9394: Yes
- AAP Selling Package Quantity UOM: EA
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- Axle Type: Semi-Floating
Extended Information:
- Country of Origin: IN
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 37.0000 x 8.0000 x 10.0000 inches
- Weight: 28.6500 POUNDS
