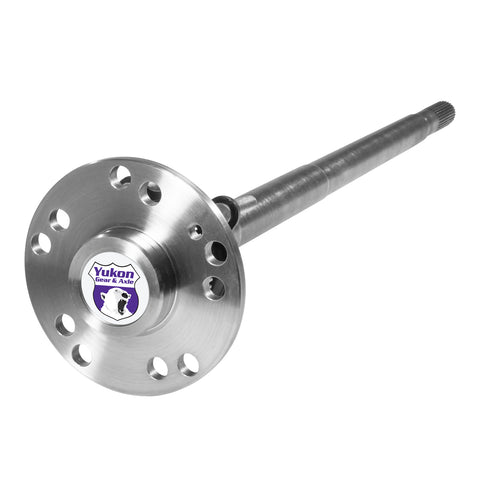

Yukon high-performance axles are built with high-tensile strength 4340 chromoly, use superior production methods that include cold roll formed splines, and feature advanced induction coil heat treating to create an axle of unmatched quality and durability.
- Fits Dana 35 differential
- 29 spline
- Measures 32.3” long
- For left or right side
- Double drilled for 5 x 5" and 5 x 5.5" bolt pattern
- Heavy duty 4340 chromoly construction

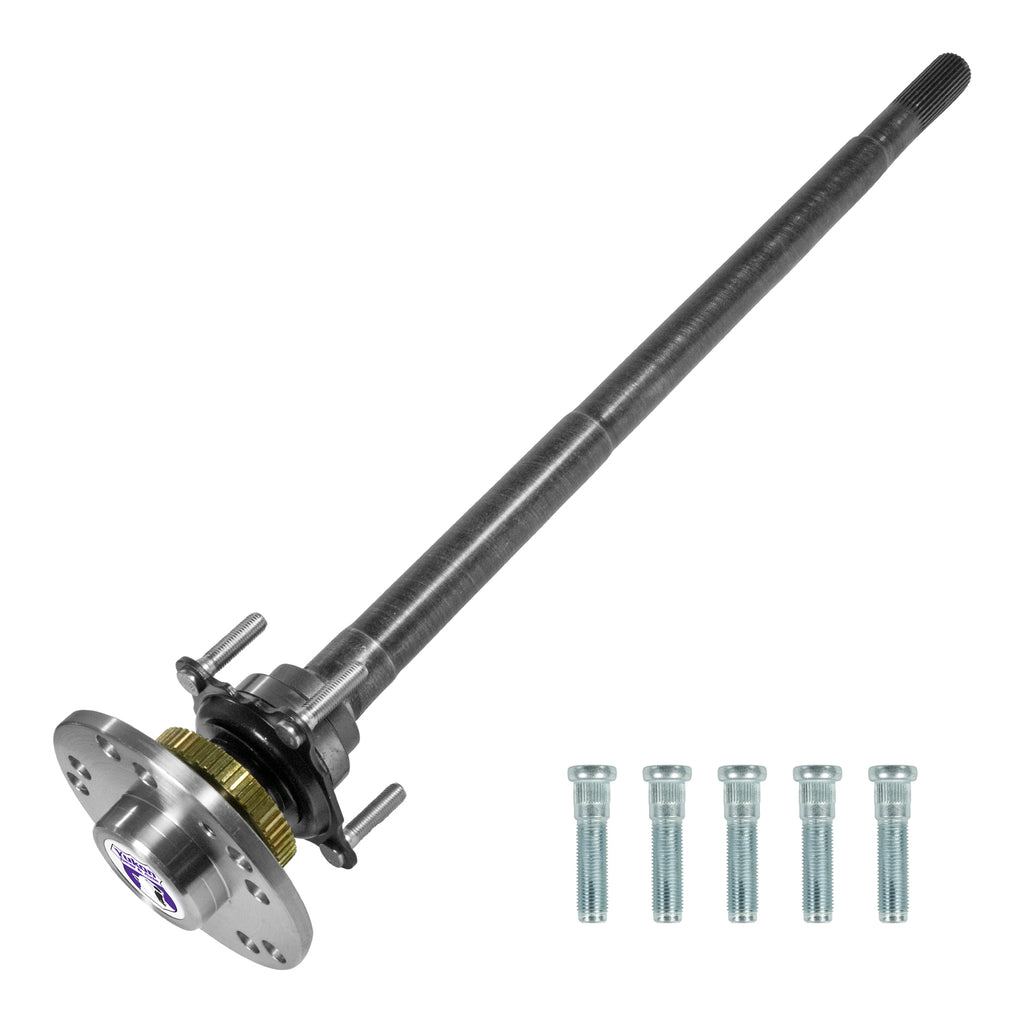

- Includes axle shaft, axle bearing and race, seal, and studs
Attributes:
- Brand Name: Yukon Gear and Axle
- GTIN: 00883584219194
- 160: No
- 198: 32.3
- 222: 4340 Nickel Chromoly Steel
- 3381: 35
- 3386: No
- 3387: No
- 9390: No
- 9394: Yes
- AAP Selling Package Quantity UOM: EA
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- Axle Type: Semi-Floating
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 36.0000 x 8.0000 x 8.0000 inches
- Weight: 45.0000 POUNDS
